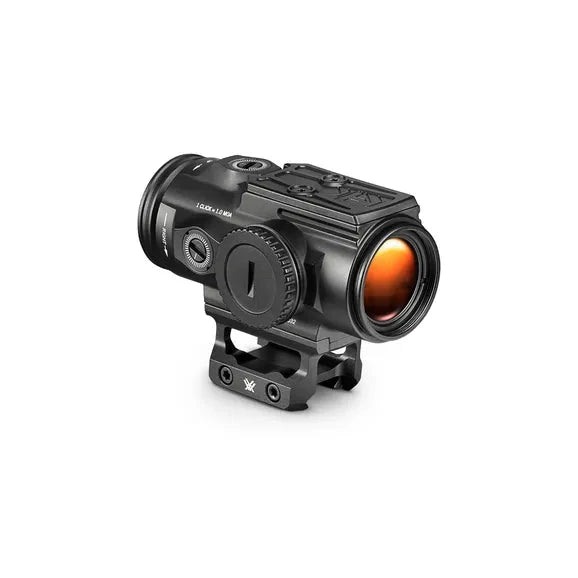

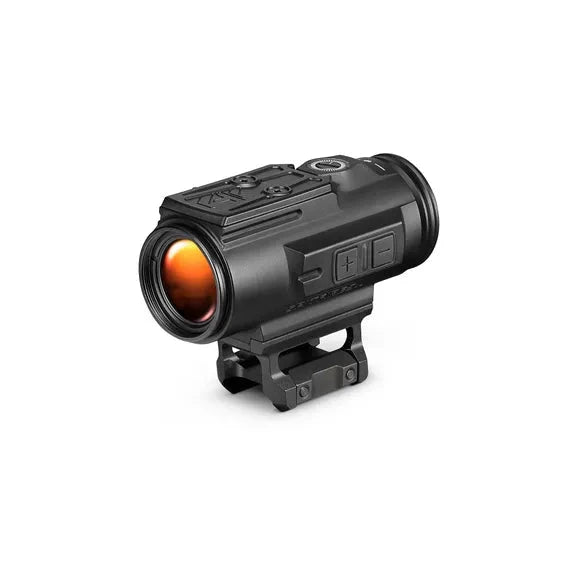

SPITFIRE™ HD GEN II
5X PRISM SCOPE

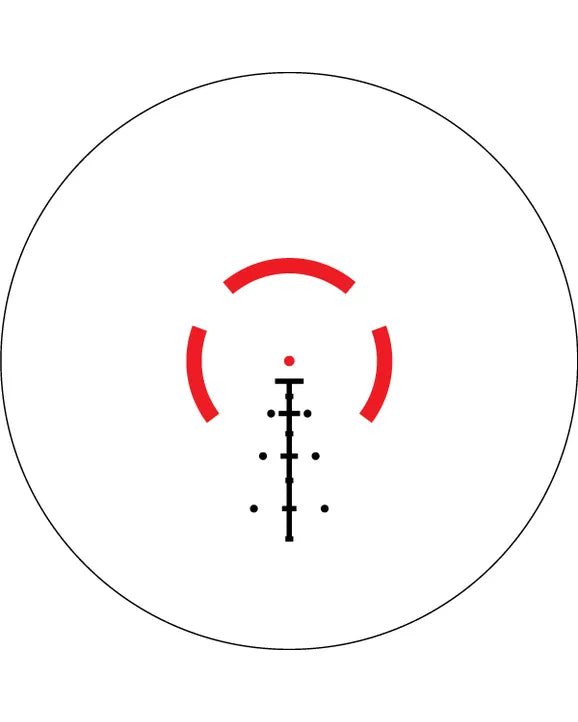

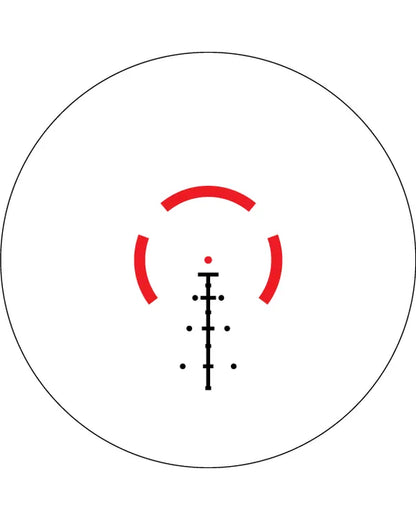

AR-BDC4 RETICLE
For shooters who need more reach without sacrificing speed, the Spitfire™ HD Gen II is built to excel at mid-range engagements. Its fixed magnification delivers sharp, accurate shots with its etched-glass reticle that stays visible even without illumination. Rugged, reliable, and ready for action, it’s uniquely designed for those who need an ideal balance of close-quarters speed and extended-range accuracy.
SPECIFICATIONS
| Dot Color | Bright Red |
|---|---|
| Magnification | 5x |
| Objective Lens Diameter | 25 mm |
| Battery Type | CR2032 |
| Reticle | AR-BDC4 |
| Eye Relief | 2.7" |
| Field of View | 23.3' @ 100 yds |
| Mount Type | Multi-Height |
| Adjustment Graduation | 1 MOA |
| Travel Per Rotation | 42 MOA |
| Max Elevation Adjustment | 200 MOA |
| Max Windage Adjustment | 200 MOA |
| Parallax Setting | 100 yds. |
| Length | 3.6" |
| Weight | 10.8 oz. |
Feature Tech
HD OPTICAL SYSTEM
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
FULLY MULTI-COATED LENSES
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
NITROGEN GAS PURGED
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
MICRO RED DOT SIGHT MOUNTING PLATFORM
Compatible with Viper®/Venom® Footprint.
MULTI-HEIGHT MOUNT SYSTEM
Lower 1/3 Co-Witness Mount and Low Mount.
14-HOUR AUTO-SHUTOFF
Automatically shuts off after 14 hours of inactivity to save battery life.
LOW-GLARE MATTE BLACK ANODIZED
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
NIGHT-VISION COMPATIBILITY
The lowest 2 settings are night-vision compatible.
10 DAYLIGHT BRIGHT BRIGHTNESS SETTINGS
Daylight bright, illuminated reticle aids in faster center-point acquisition in bright daylight conditions.
WATERPROOF
Designed to withstand harsh weather conditions.
FOGPROOF
Designed to withstand a wide range of temperatures.
SHOCKPROOF
Designed to withstand the highest levels of recoil and impact.
