AceBeam H35 | 5-Core Dual-Light Headlamp
AceBeam H35 | 5-Core Dual-Light Headlamp
Couldn't load pickup availability
White or Red. Hands Always Free.
A rugged industrial-grade headlamp combining a 5-core LED array — 4 white LEDs (2600 lumens) plus 1 dedicated red LED (200 lumens) — for preserving night vision during hunting or fieldwork.
Noctis Africa Verified — tap to read more
Checked against official Acebeam product information and ANSI/FL1-tested output figures. Specifications and runtime figures are verified before publication. Metric measurements are presented first for South African customers.
4-LED white array
Peak intensity 7225cd
Up to 63m throw
3800mAh, in-body USB-C charging
Product Overview

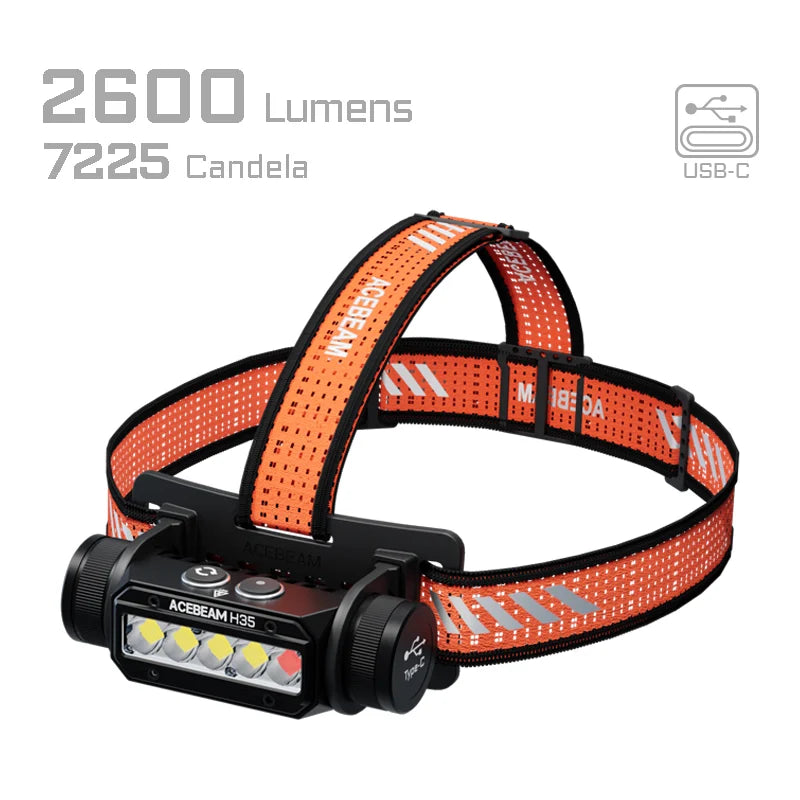

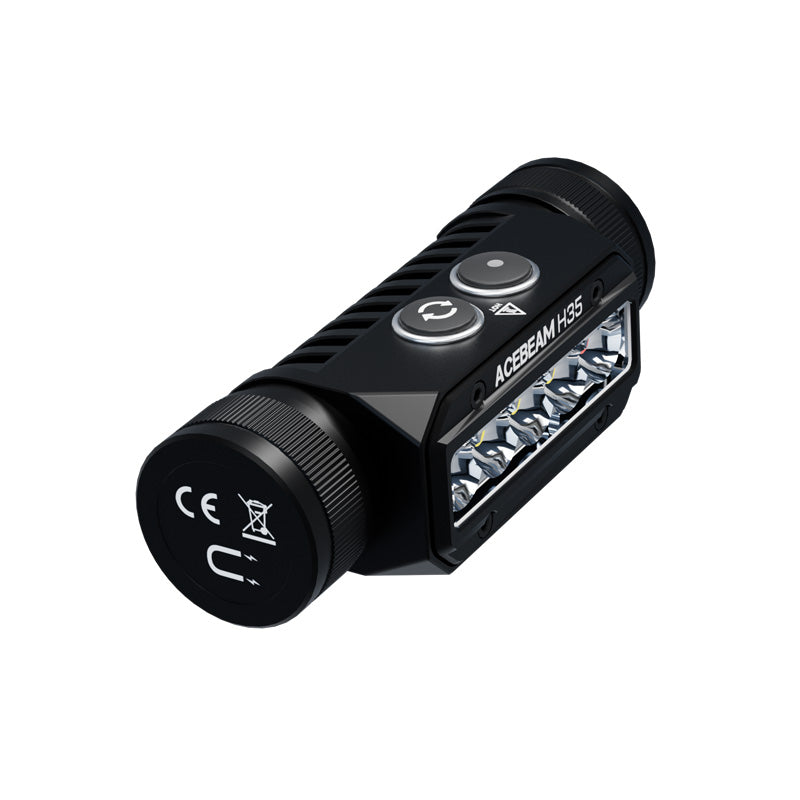

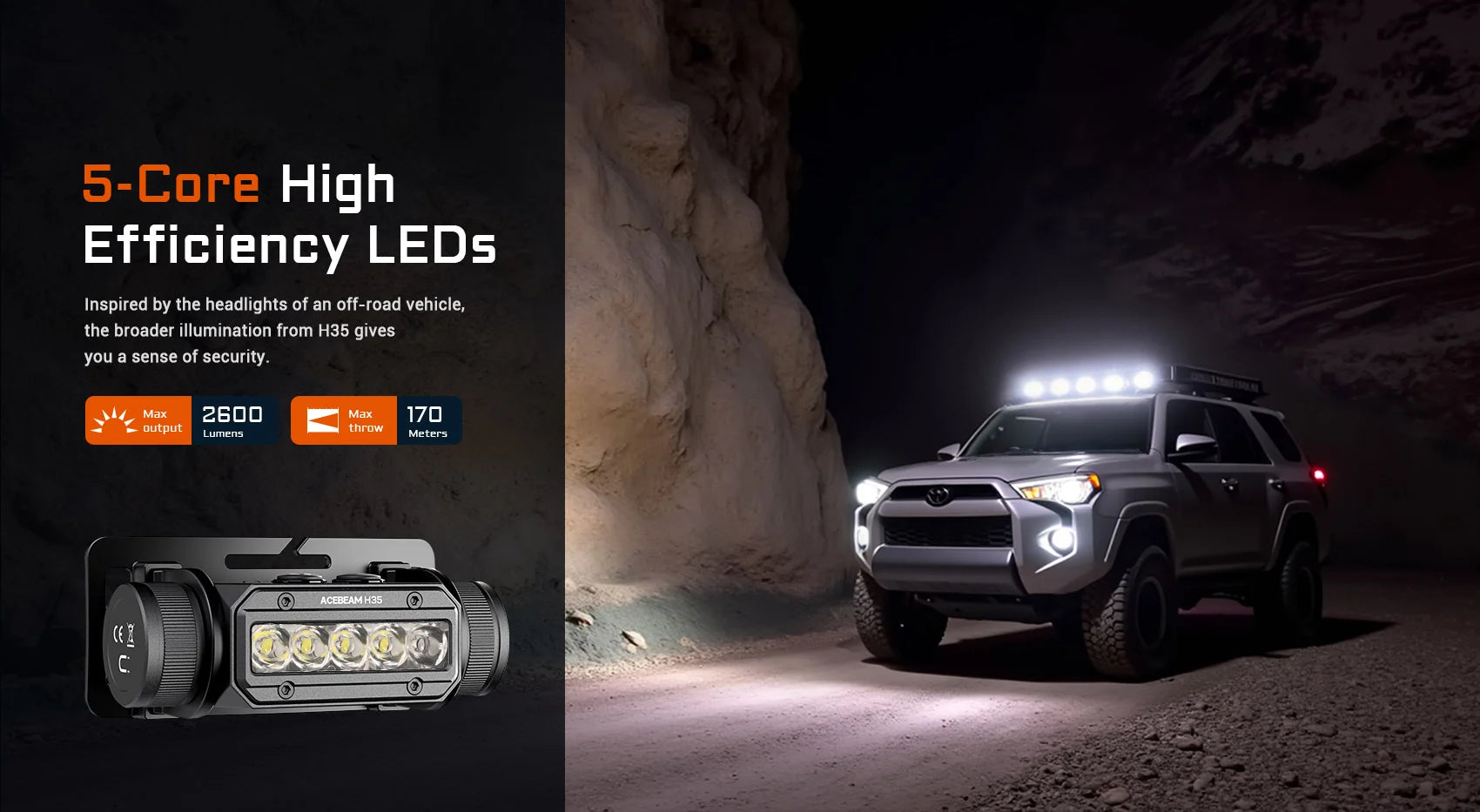

The Acebeam H35 is a high-performance industrial-grade headlamp built around a 5-core LED array — 4 white LEDs plus 1 red — delivering up to 2600 lumens of white light with a 170m throw, and a genuinely bright 200-lumen red light for preserving night vision during hunting or tactical field use.
A patented bracket allows 70° of stepless pitch adjustment, and an intuitive dual-button interface separates power control (On/Off, Turbo/SOS/Ultra-Low) from light-source and brightness cycling. Powered by an included 3800mAh 18650 battery, it recharges to full via the headlamp's USB-C port in around 3.5 hours (the battery itself has no separate USB-C port — it charges in-body) and runs up to 216 hours on its lowest setting. Built from AL6061-T6 aluminium, it's IP68 rated and 1.5m drop resistant.
Key Features
2600 lumens white, 200 lumens red — genuinely bright for a headlamp.
Up to 63m throw, ideal for hunting and stealth use.
Patented bracket for stepless angle adjustment.
On Ultra-Low mode.

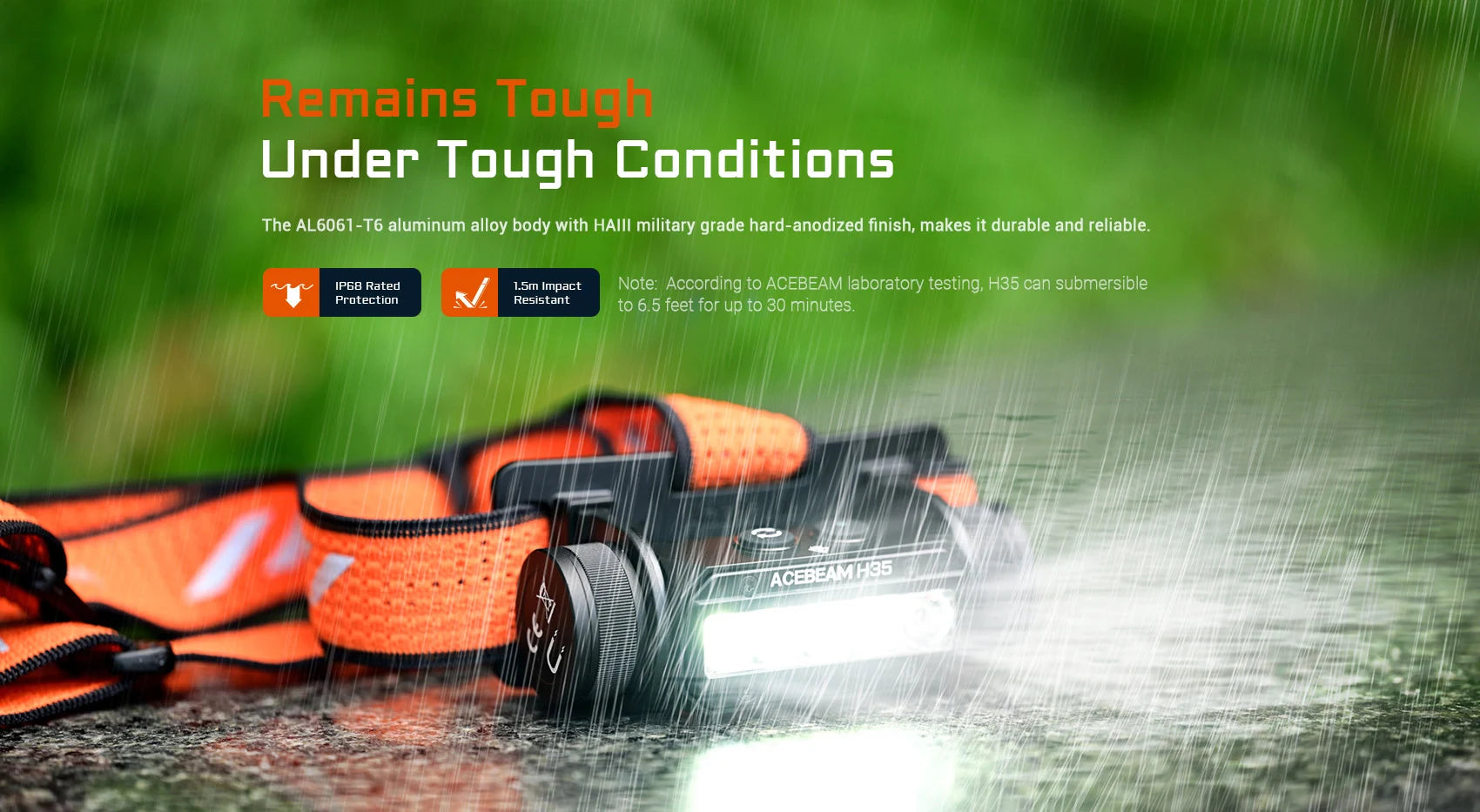

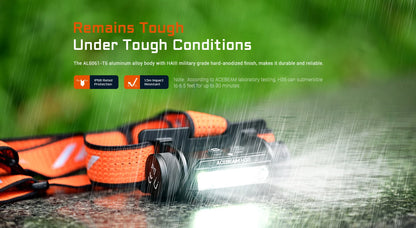

Full dust and water protection, plus 1.5m drop resistance.
Best Applications
Technical Specifications
| Specification | H35 |
|---|---|
| Model Number | H35 |

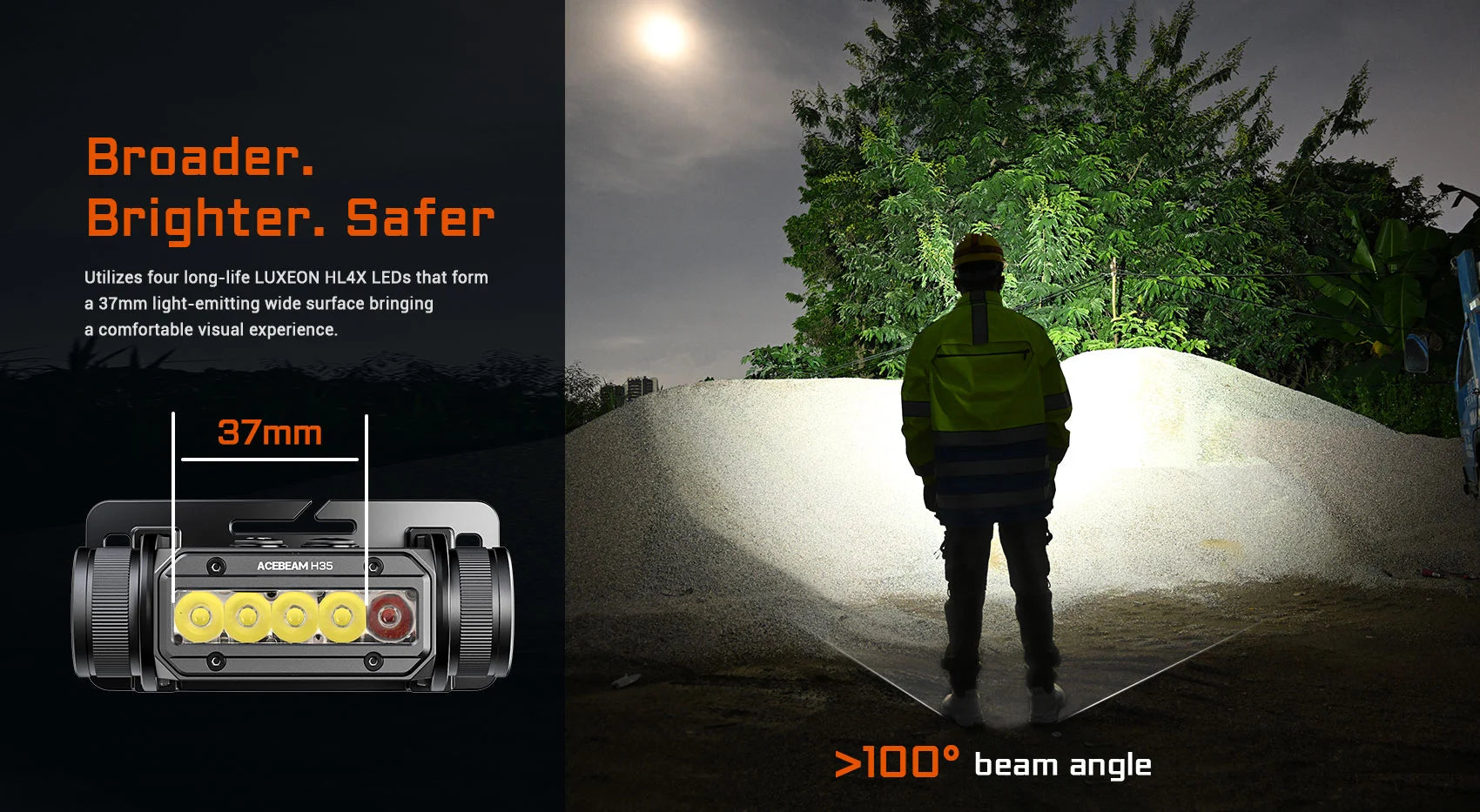

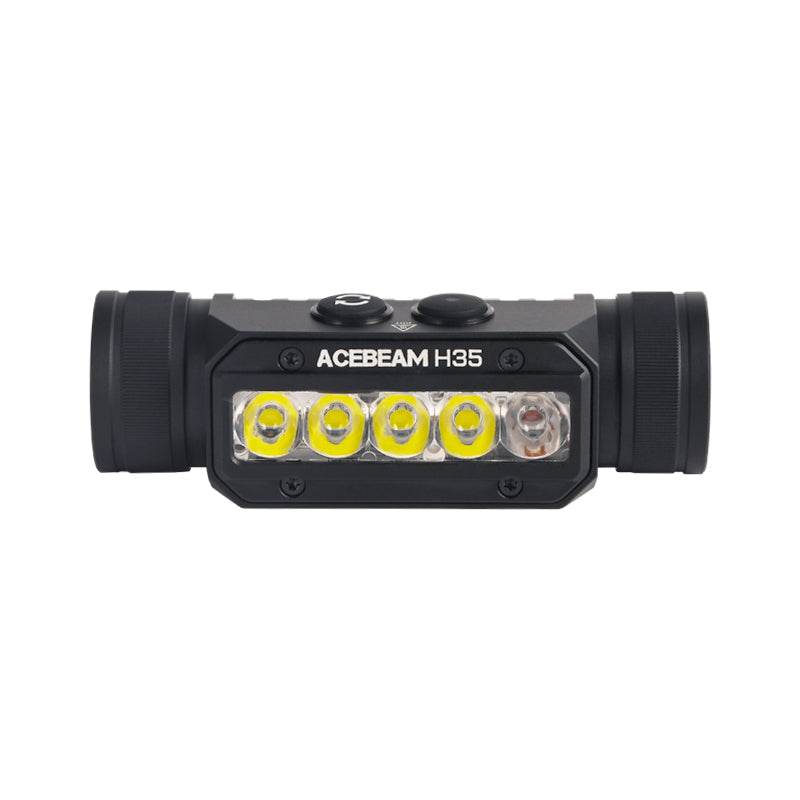

| LED | 5-core: 4x white (LUXEON HL4X 6500K) + 1x red |
| Max Output — White | 2600 lumens (Turbo) |
| Max Beam Distance — White | 170m |
| Max Beam Intensity — White | 7225 cd |
| Max Output — Red | 200 lumens |
| Max Beam Distance — Red | 63m |
| Modes | 5 white levels (Ultra Low/Low/Mid/High/Turbo) + Red (Lighting mode + SOS) |
| Runtime — Turbo | 60sec at 2600lm, steps to 1100lm (9min), then 500lm (3hr 10min) |
| Runtime — Ultra Low | 216hr at 10lm |

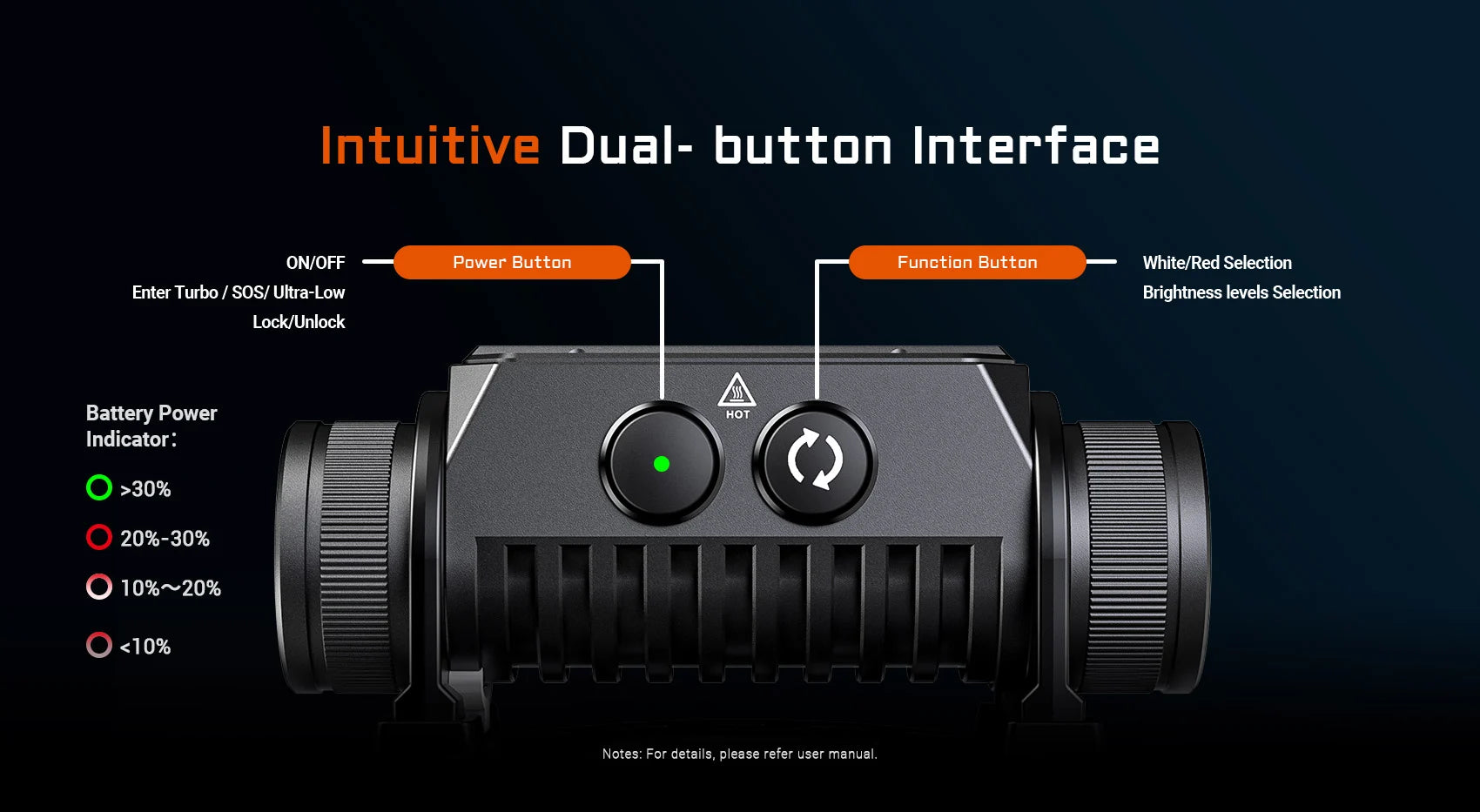

| Switch | Dual-button — Power button + Function button |

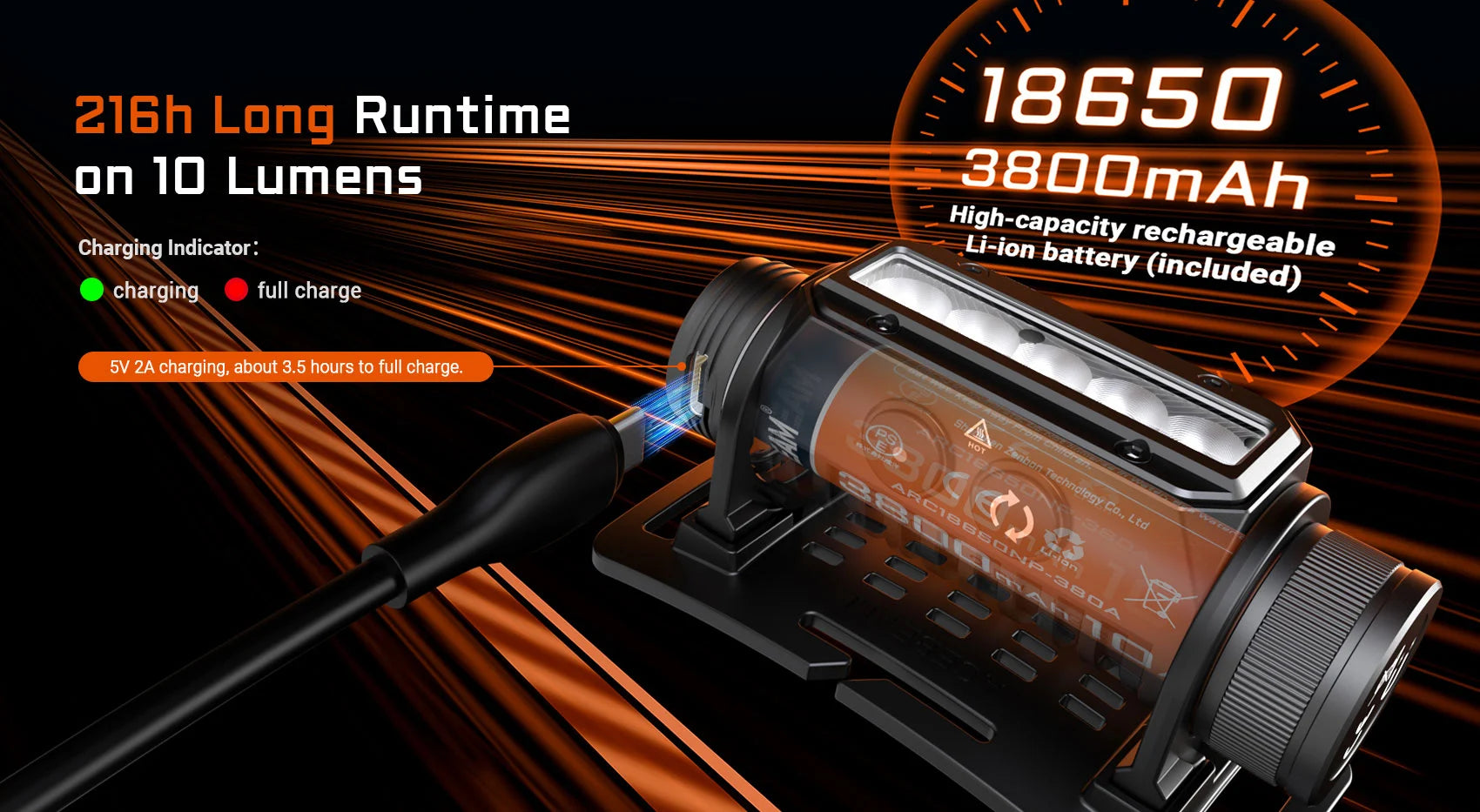

| Battery | 1x Acebeam 18650, 3800mAh (included); charges in-body via the headlamp's USB-C port (battery has no separate port) |
| Charging | USB-C, ~3.5hr full charge |
| Waterproof Rating | IP68 |
| Impact Resistance | 1.5m drop rating |
| Length | 87mm |
| Width | 40mm |
| Height | 44.3mm |
| Weight | 163g (with battery, headband and bracket) |
| Body Material | AL6061-T6 aluminium, unibody |
Metric-first presentation. Never infer missing specifications. Runtime figures are ANSI/FL1 tested as published by Acebeam.
Acebeam Warranty
10-Year Repair Warranty.
Acebeam products with quality issues under normal use are eligible for free repair within 10 years of purchase. A 15-day free exchange window applies for quality issues found soon after purchase. Removable batteries carry a separate 1-year (12-month) warranty from date of purchase. Additional accessories are not covered. This warranty excludes damage from disassembly, modification, or incorrect operation.
Contact Noctis Africa and we will guide you through the applicable local support process.
