Three Light Sources. One Flat Body.

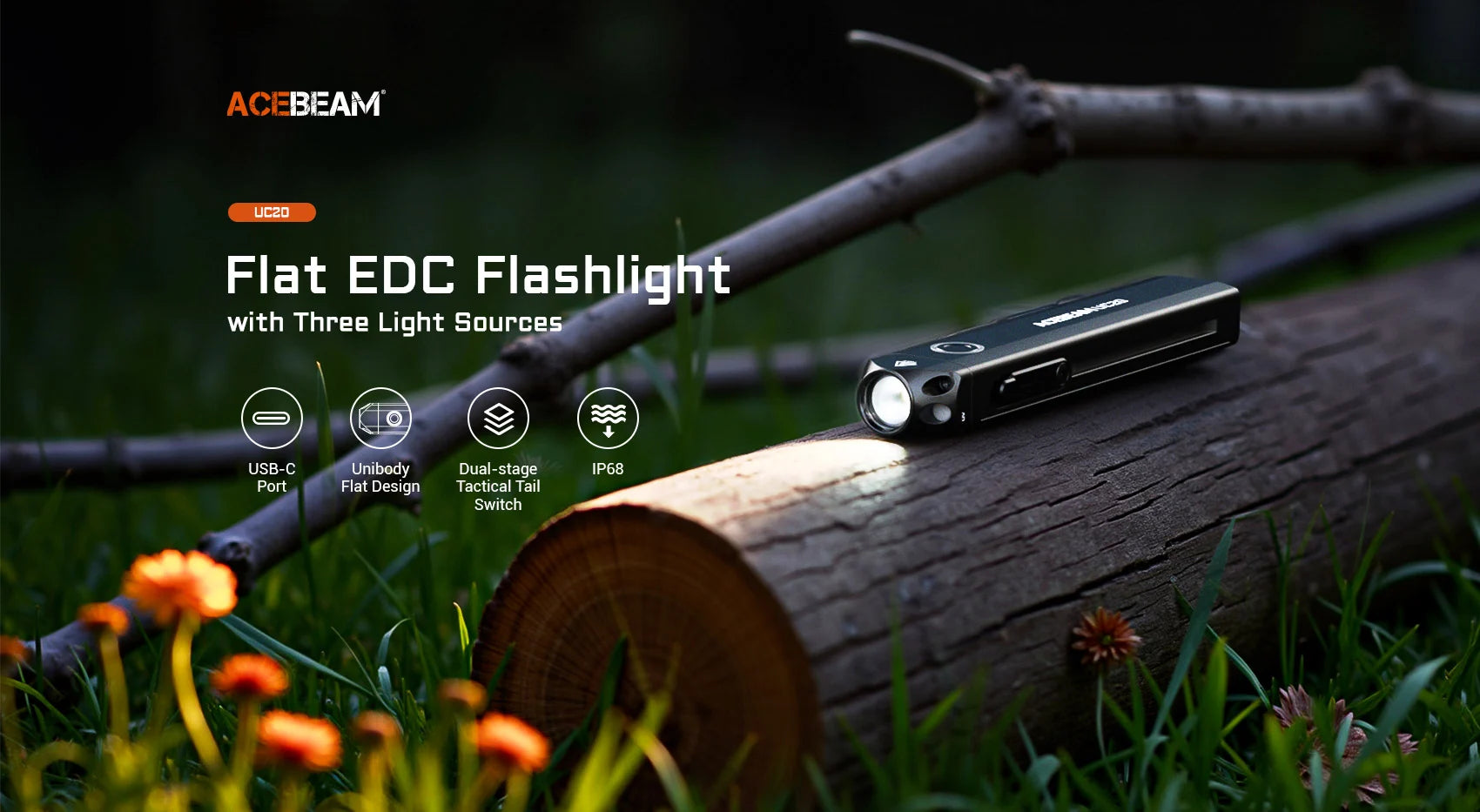

A flat, CNC-machined EDC flashlight combining white light, soft red light, and 365nm UV in a single slim body that disappears in a pocket.
Noctis Africa Verified — tap to read more
Checked against official Acebeam product information and ANSI/FL1-tested output figures. Specifications and runtime figures are verified before publication. Metric measurements are presented first for South African customers.
White light / SFT-25R LED
Custom TIR optic
23lm red, 365nm UV
USB-C, 1.2hr charge
Product Overview

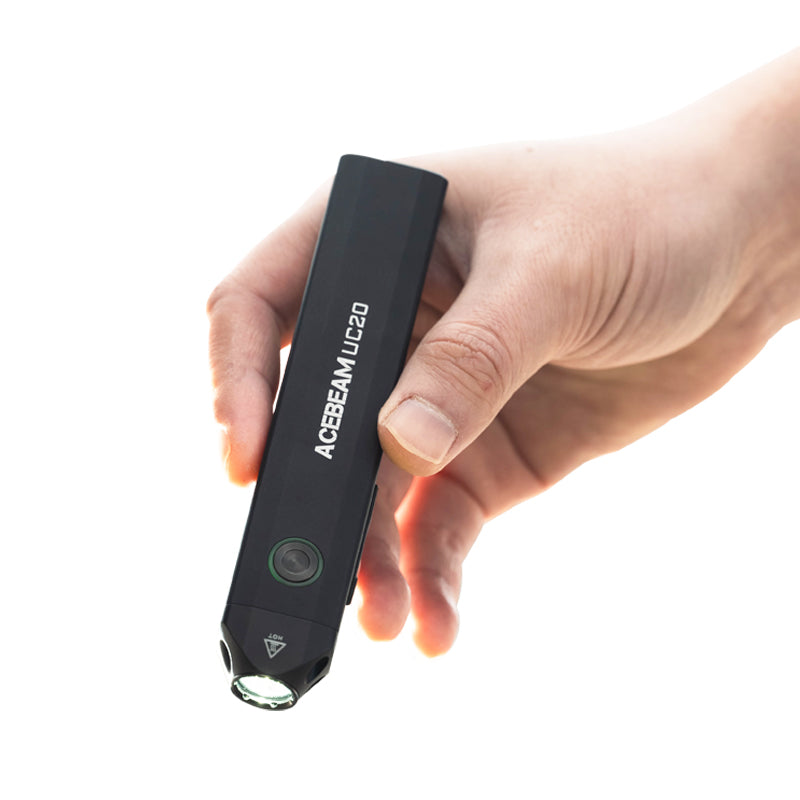

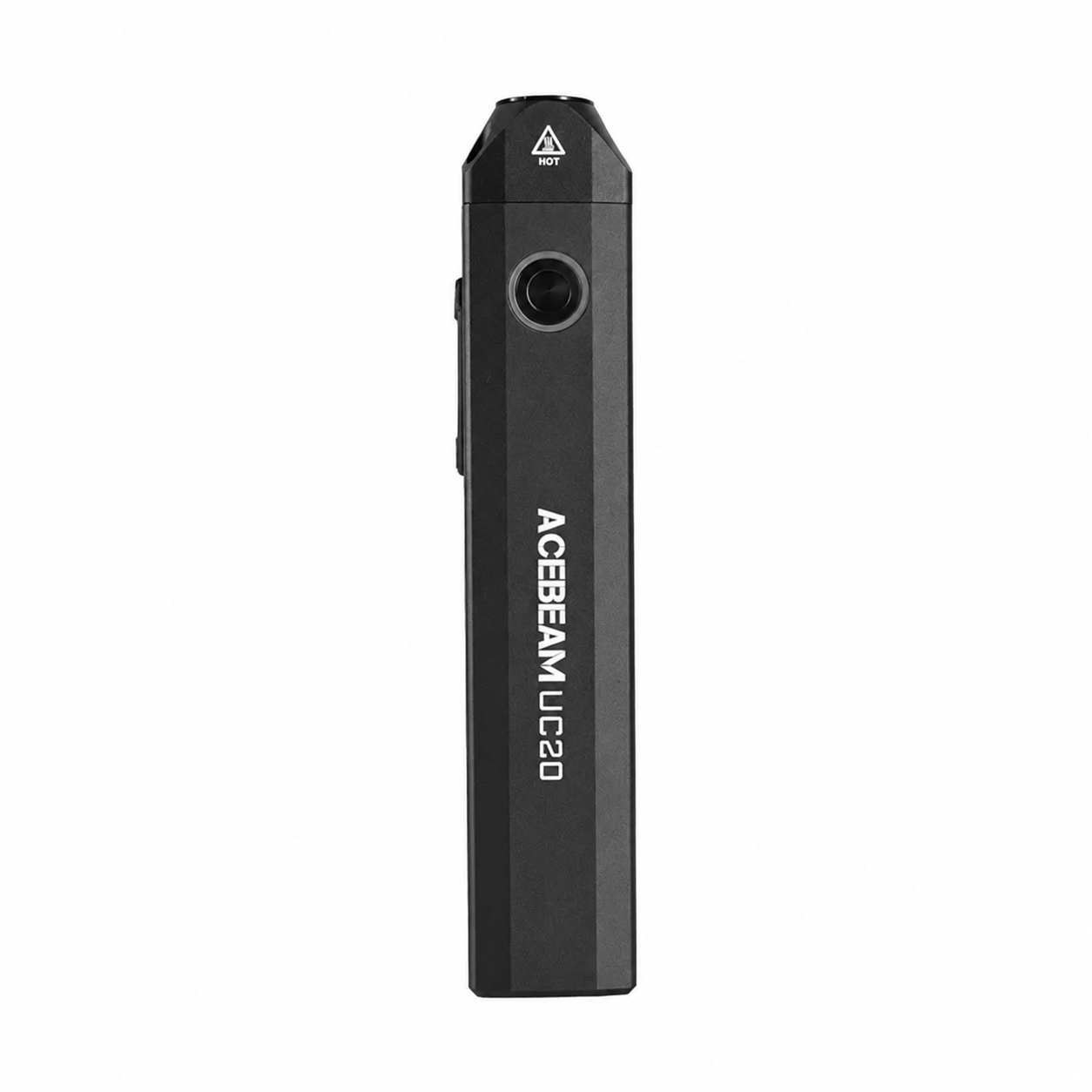

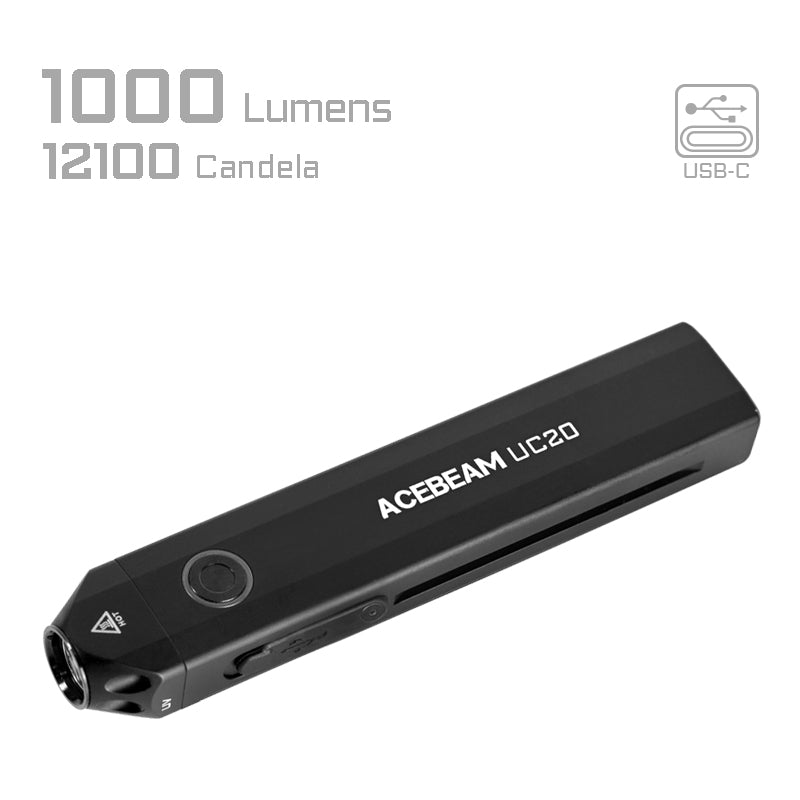

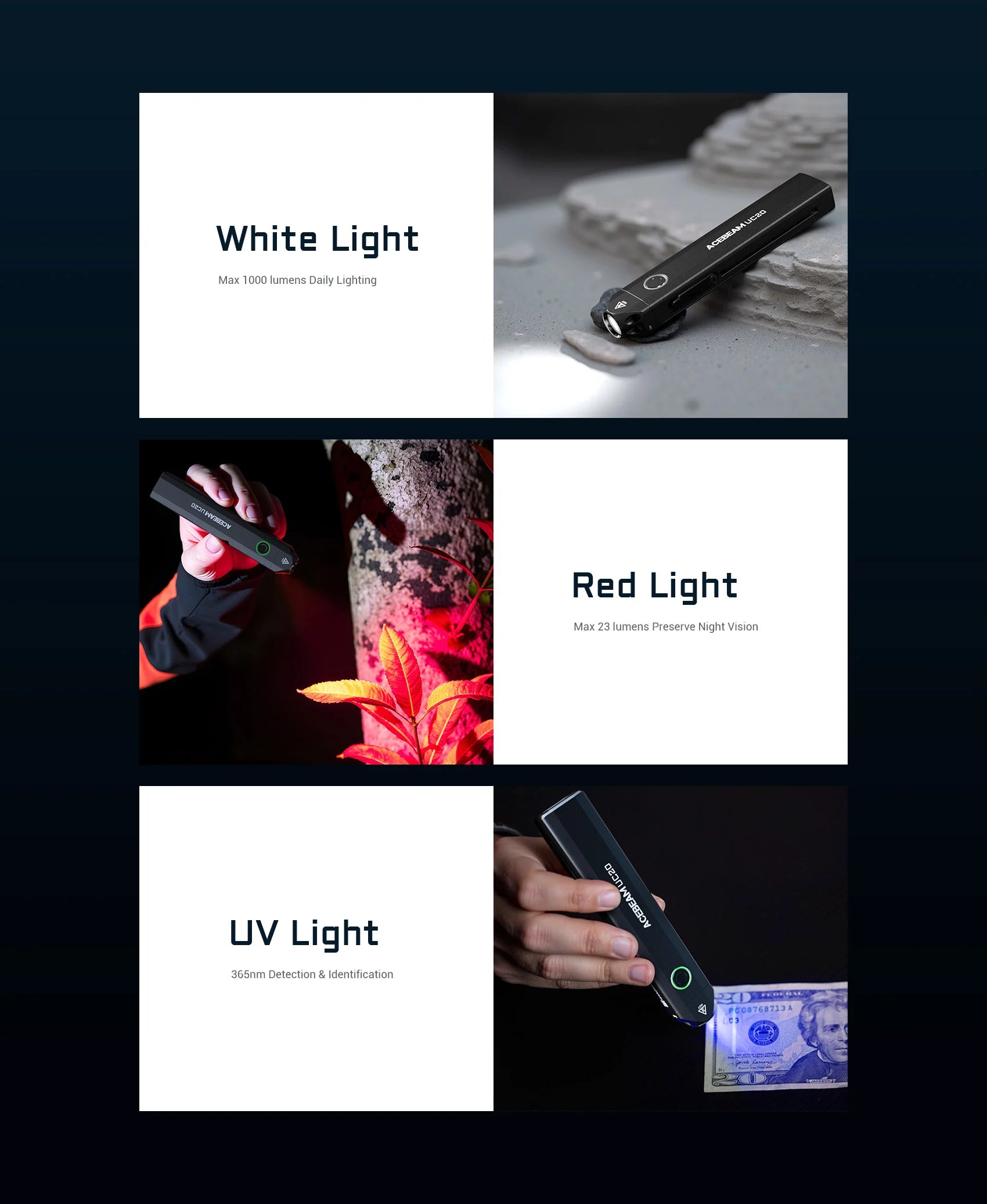

The Acebeam UC20 is a 3-in-1 flat EDC flashlight integrating white light (1000 lumens, 220m throw), soft red light (23 lumens, for preserving night vision), and 365nm UV light (for detecting stains, markings, or fluorescent material) in a single slim, CNC-machined unibody.

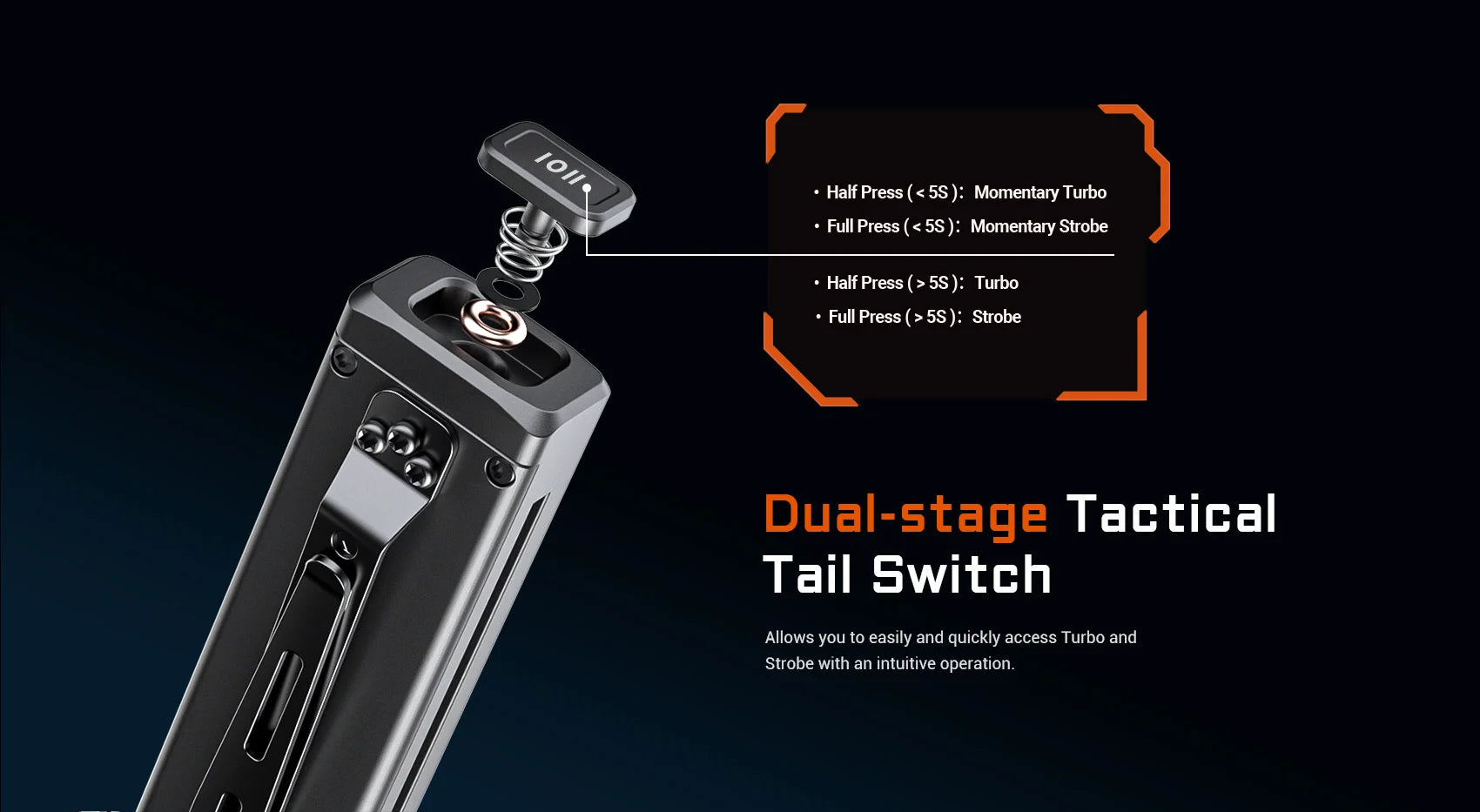

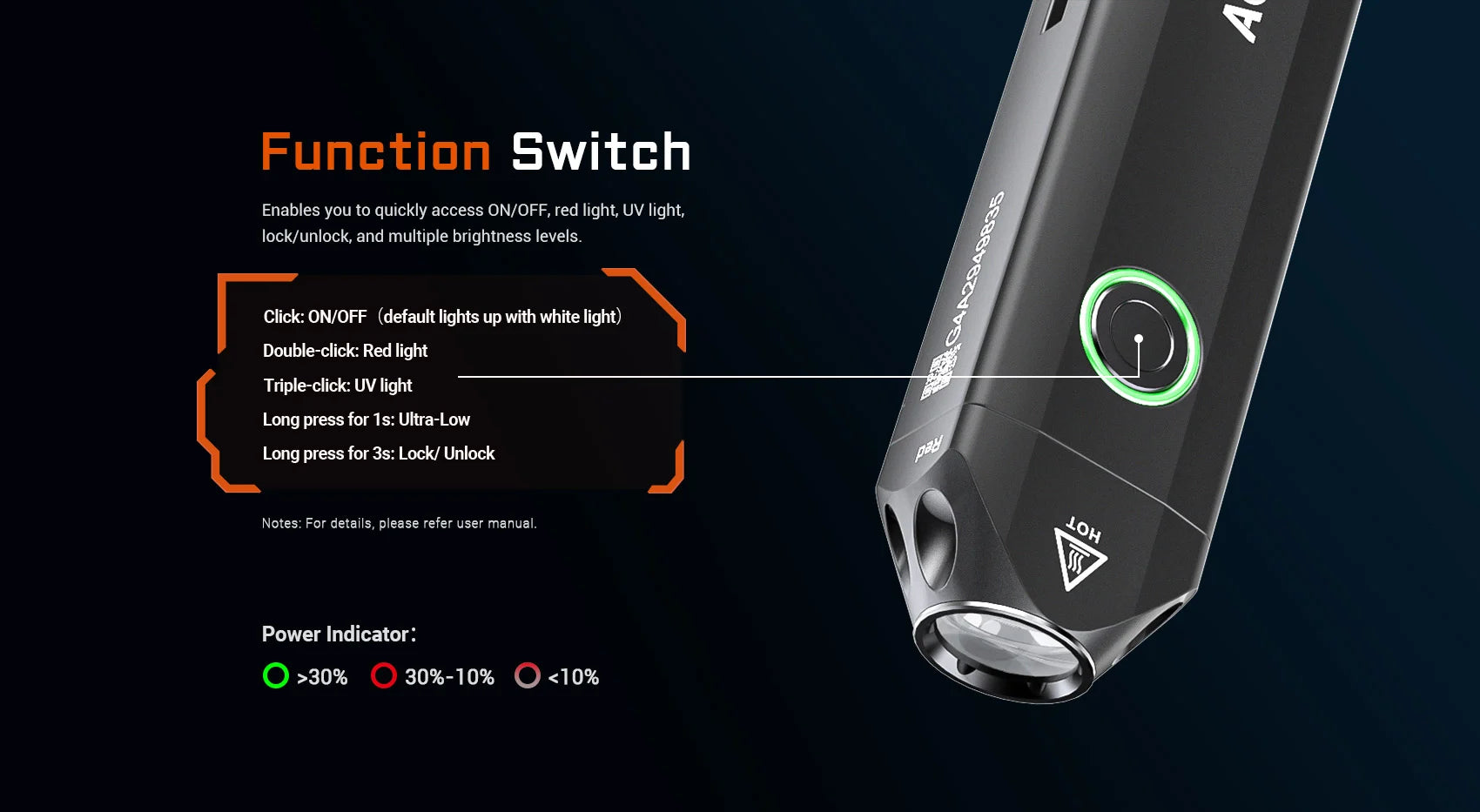

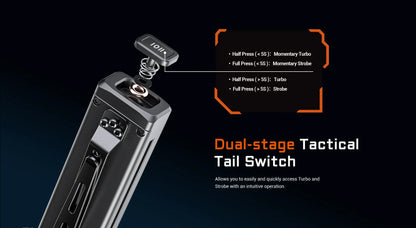

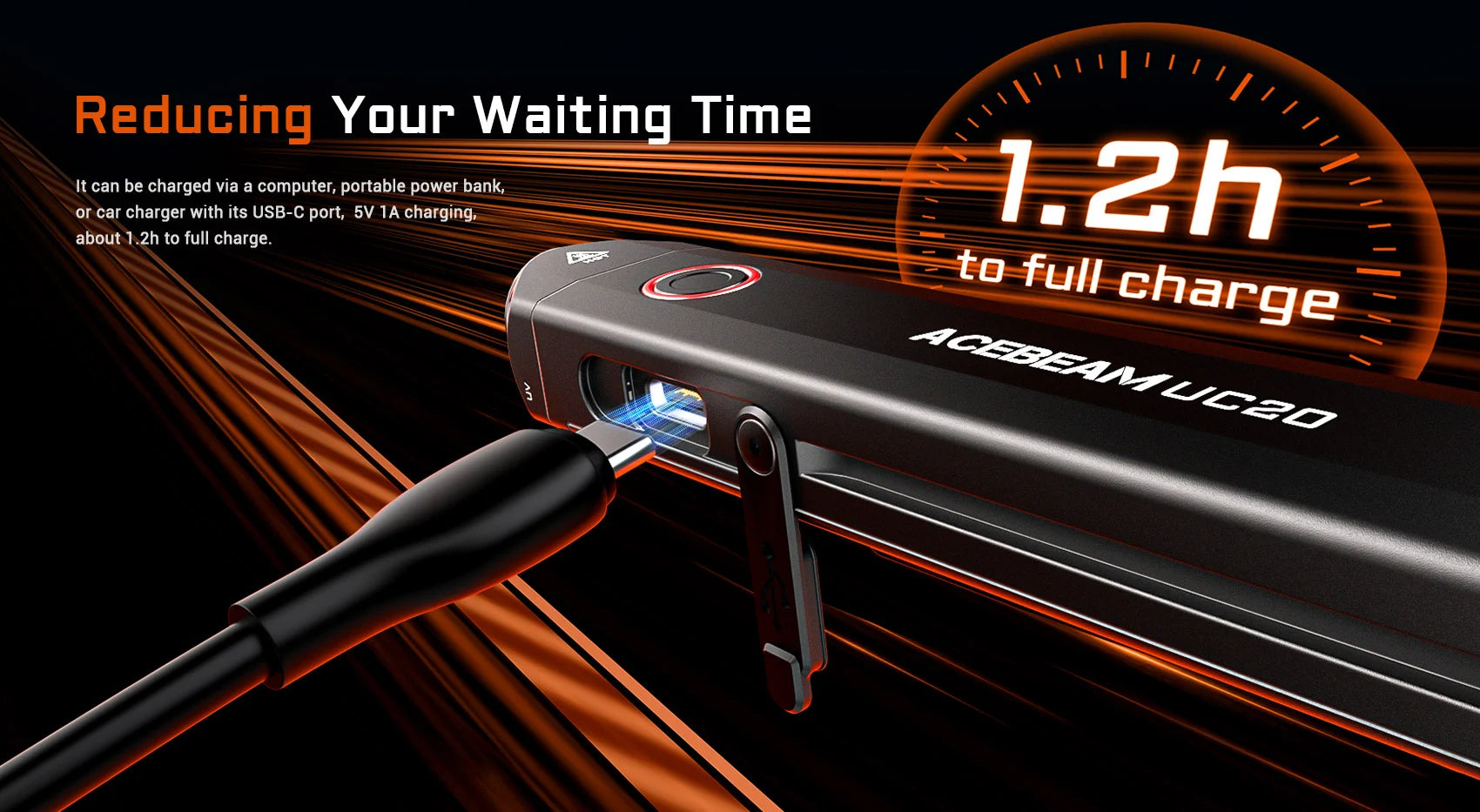

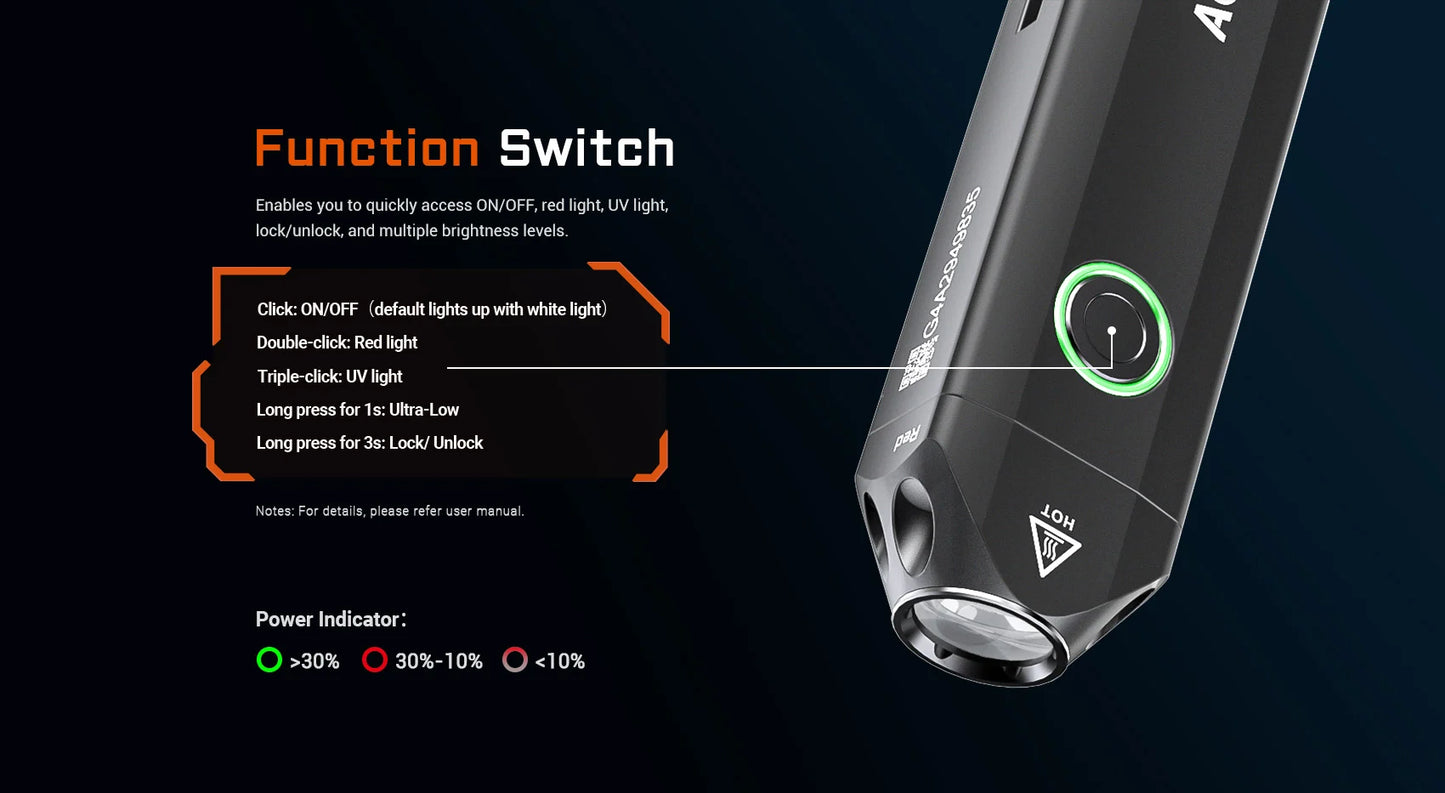

A dual-stage tactical tail switch gives instant access to Turbo and Strobe, while a dedicated side switch cycles through the white brightness levels and toggles into red and UV modes. The built-in USB-C rechargeable battery reaches full charge in about 1.2 hours. Rated IP68 (2m submersion for 30 minutes) and 1.5m drop-resistant.
Key Features
White (1000lm), soft red (23lm), and 365nm UV in one body.
Luminus SFT-25R LED with custom TIR optic.
Instant access to Turbo and Strobe.

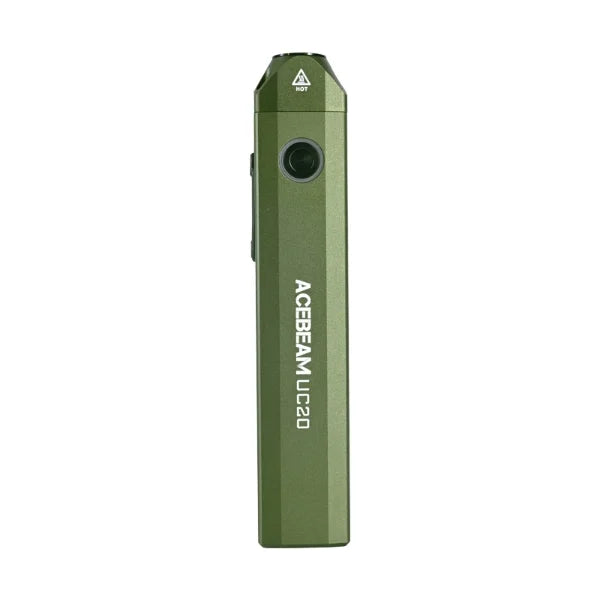

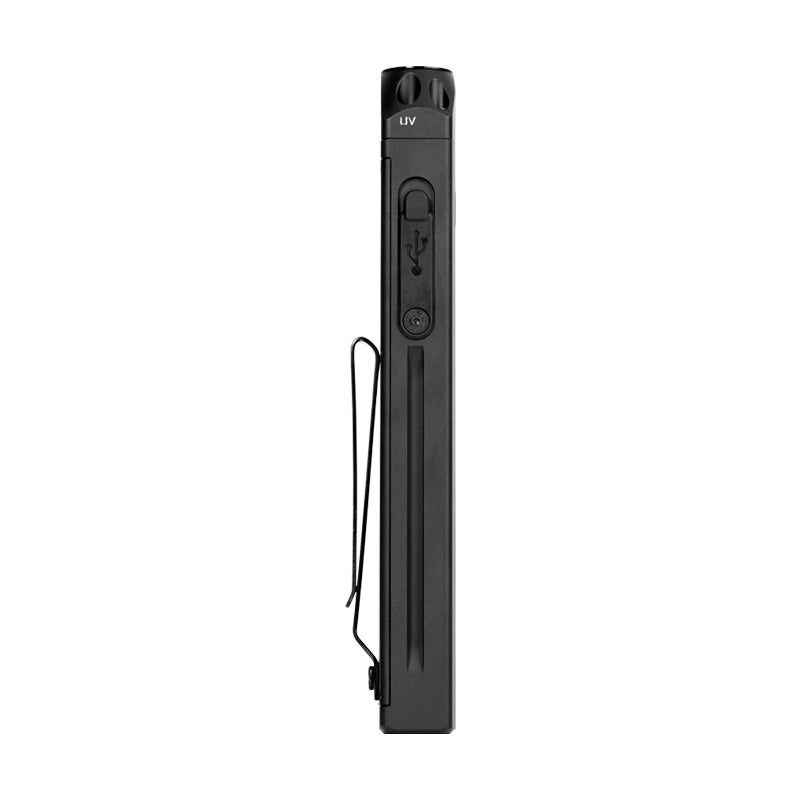

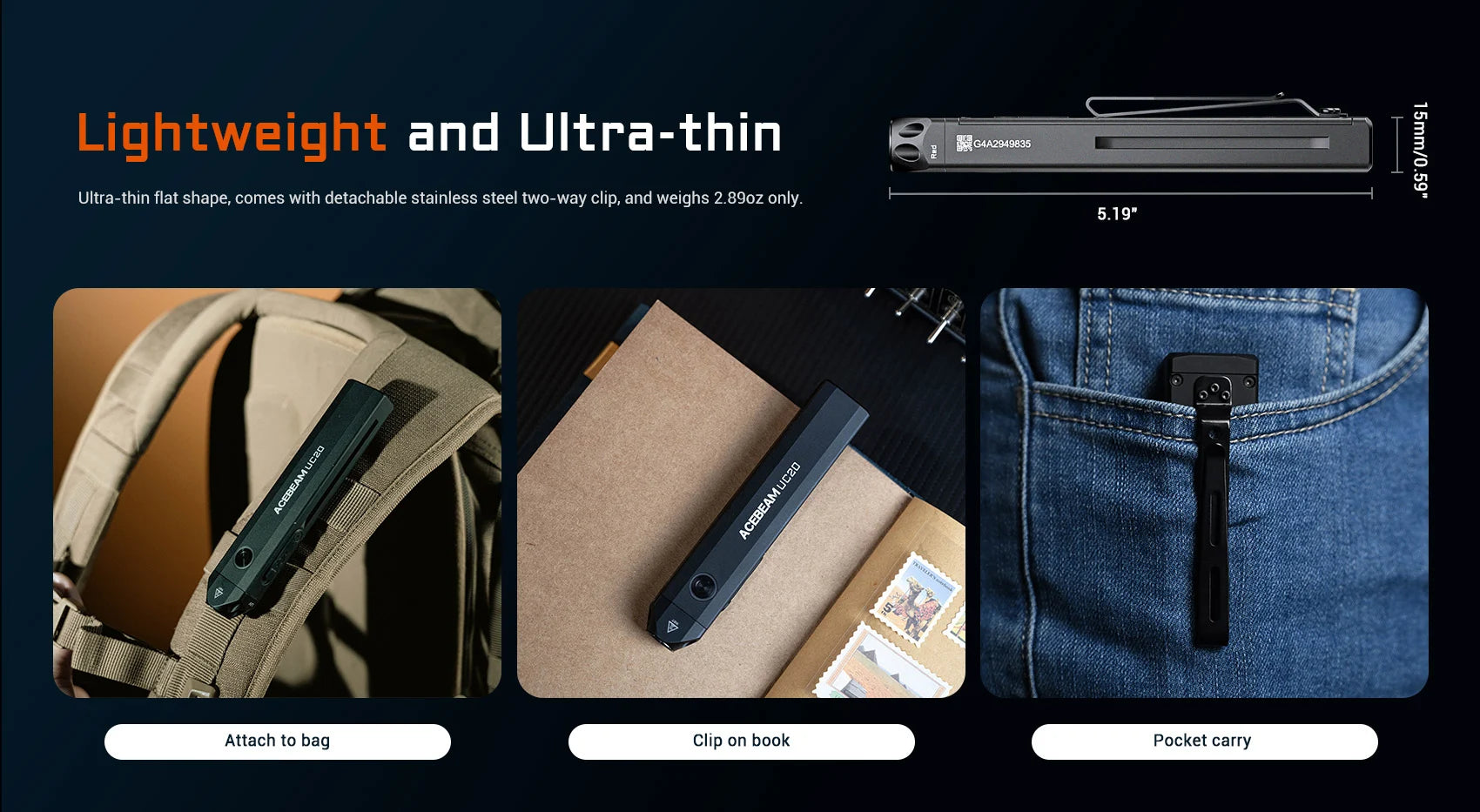

Slim unibody design, easy to carry unnoticed.

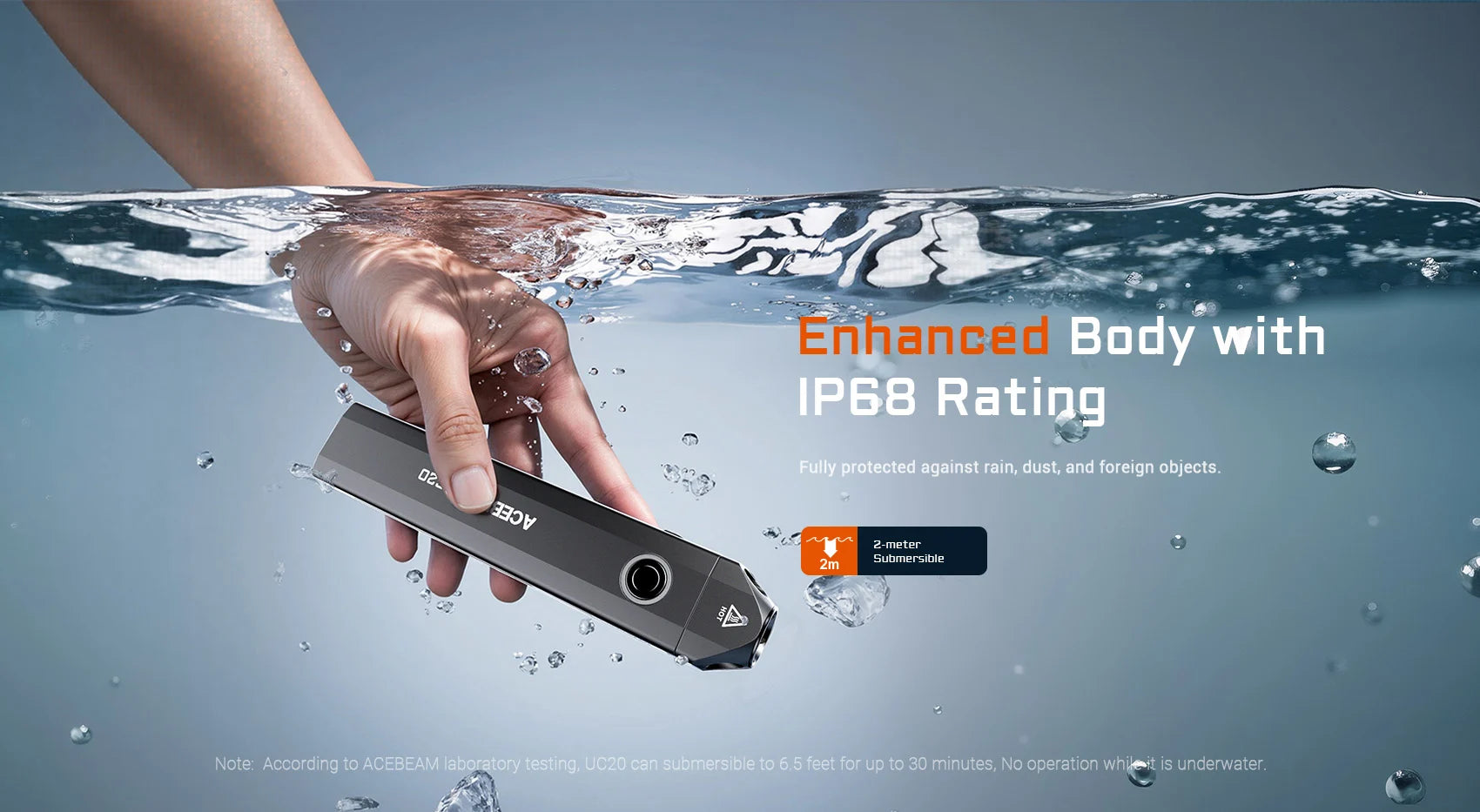

2m submersion for 30 minutes, plus 1.5m drop resistance.
Best Applications
Technical Specifications
| Specification | UC20 |
|---|---|
| LED | Luminus SFT-25R 6500K (white); secondary red + UV emitters |
| Max Output — White | 1000 lumens |
| Max Output — Red | 23 lumens |
| UV Wavelength | 365nm |
| Max Beam Distance | 220m (white) |
| Modes | 5 white brightness levels + Strobe, plus Red and UV modes |
| Switch | Dual-stage tactical tail switch + side switch |
| Battery | Built-in USB-C rechargeable, 1000mAh |
| Charging | USB-C, ~1.2hr full charge |
| Waterproof Rating | IP68 (2m / 30min) |
| Impact Resistance | 1.5m drop rating |
| Length | 132mm |
| Width | 25mm |
| Height | 15mm |
| Weight | 82g |
| Body Material | AL6061-T6 aluminium, HA III hard-anodized |
| Lens | Double-sided tempered glass, anti-reflective coating |
Metric-first presentation. Never infer missing specifications. Runtime figures are ANSI/FL1 tested as published by Acebeam.
Acebeam Warranty
2-Year Warranty (Built-In Battery).
Acebeam products with a built-in, non-removable battery are covered for free repair within 2 years of purchase under normal use. A 15-day free exchange window applies for quality issues found soon after purchase. Accessories are not covered. This warranty excludes damage from disassembly, modification, or incorrect operation.
Contact Noctis Africa and we will guide you through the applicable local support process.
