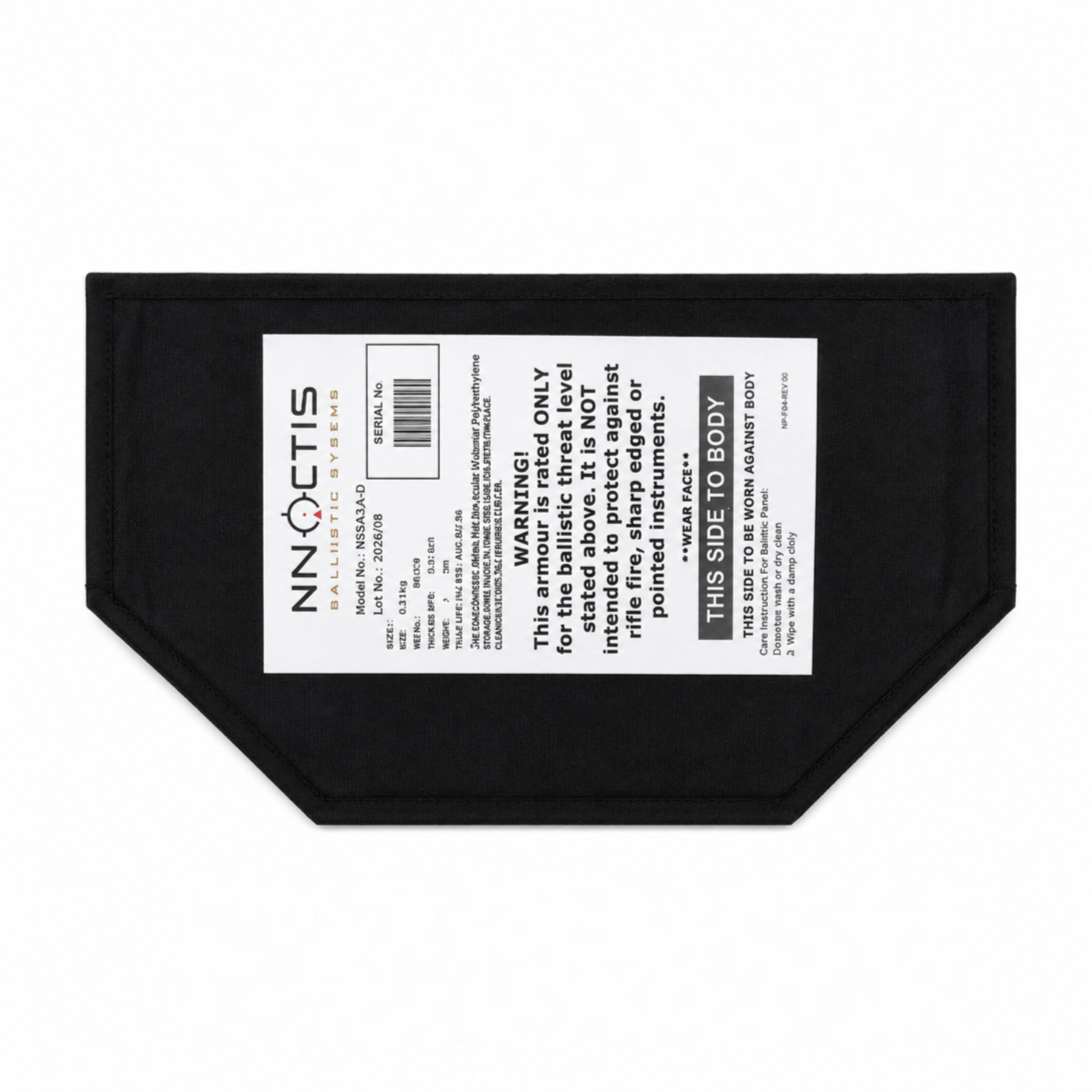

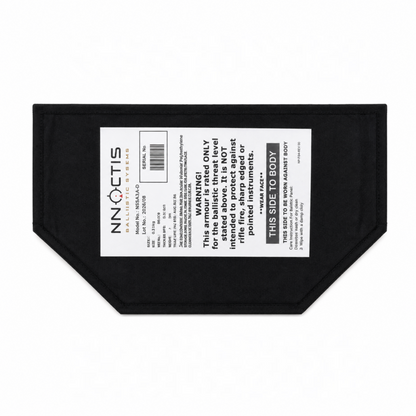

Level IIIA Soft ArmourDrop-Down Utility Insert
Extend Your Coverage. Protect What's Left Exposed.
The Noctis NS-D3A is a flexible Level IIIA soft-armour insert designed to fit compatible drop-down utility pouches and danglers, extending ballistic coverage to the lower abdomen and groin — areas that typically remain exposed below the plate.
NIJ 0101.04 Protocol TestedMetric FirstNoctis Ballistic SystemsExpert Advice Available
Noctis Africa Verified — tap to read more
Checked against official Noctis Ballistic Systems datasheets. Specifications, tested threats, and configuration requirements are verified before publication. Metric measurements are presented first for South African customers.
PROTECTION Level
IIIA
Standalone (Pistol / Frag)
Aramid Fibre
Weight
0.2kg
Lightweight Construction
Size
220 x 140mm

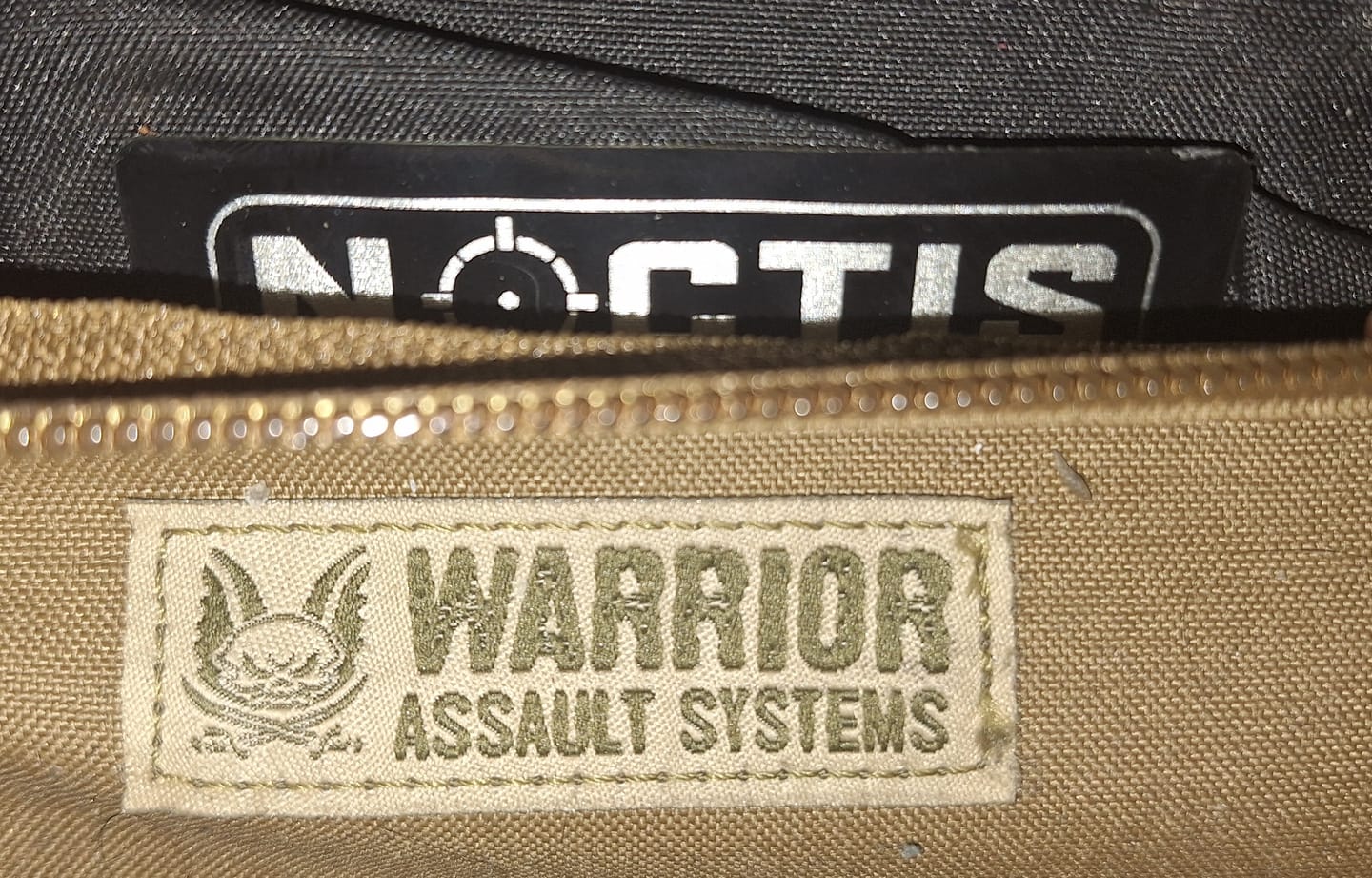

Drop Down Utility Insert by Warrior Assault Systems
Noctis Africa Expert Insight
BUY IF

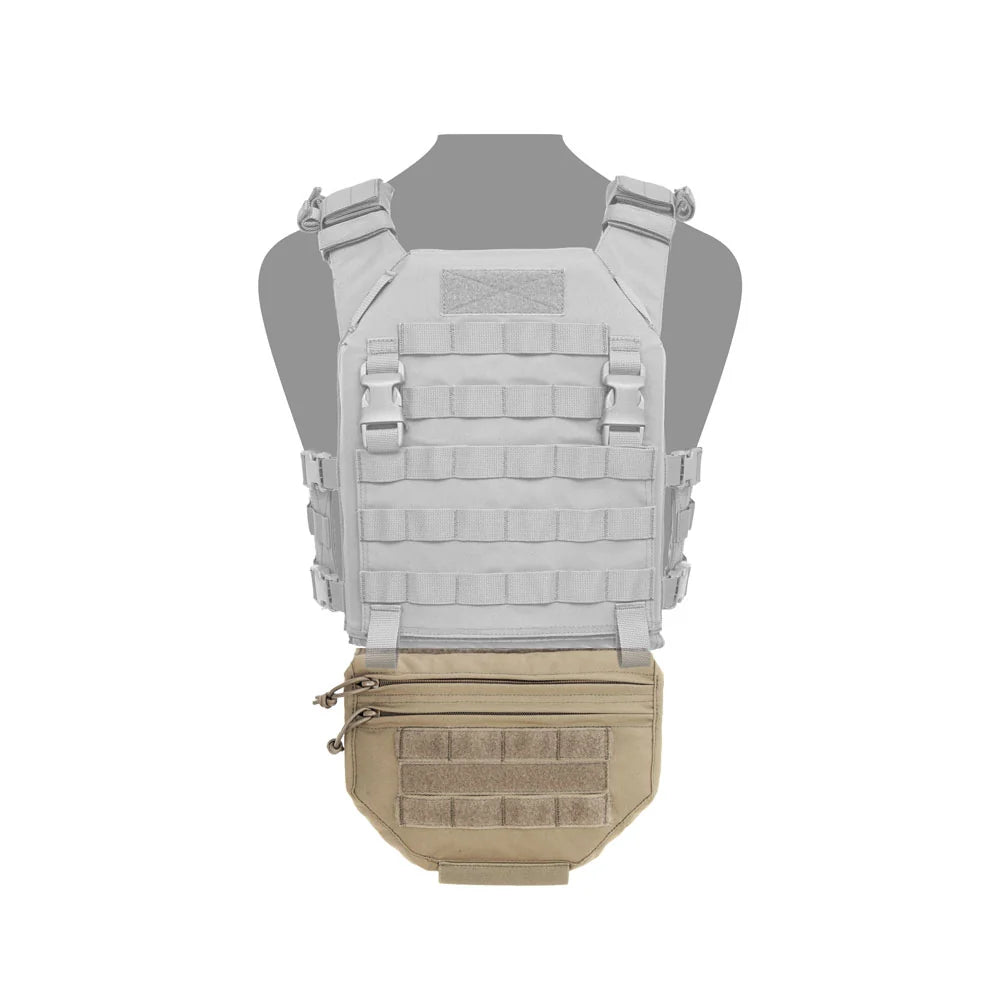

- You want to extend your plate carrier's protection down to the lower abdomen and groin — areas commonly left exposed below the plate.
- You're using a compatible drop-down utility pouch or dangler and want ballistic coverage added to it.
- You want a genuinely flexible, comfortable insert that moves with you rather than restricting movement.
- You want proven protection against common handgun-calibre threats and fragmentation.
NOT IDEAL IF
- You need standalone chest/torso-level pistol protection — see the NS-S3A instead.
- You're facing rifle-calibre threats — soft armour alone does not defeat rifle rounds; see the NSICW3+ or NSSA3+.
CONSIDER
-
Noctis NS-S3A if you need standalone torso pistol protection, including for use in a covert carrier.
Product Overview
The NS-D3A Level IIIA soft-armour insert is designed to fit compatible drop-down utility pouches and danglers, extending flexible ballistic coverage to the lower abdomen and groin. It provides protection against common handgun-calibre threats and fragmentation while maintaining the flexibility required for comfort and freedom of movement.
Designed as supplementary protection, the insert complements your primary body-armour system by covering vulnerable areas below the plate carrier that would otherwise remain exposed.
Constructed from multiple layers of woven aramid fibre, the panel's fibres catch and deform a projectile on impact, spreading its energy across a wider area. Aramid soft armour is a proven, flexible choice with decades of operational use — offering strong multi-hit capability, good fragmentation performance and excellent heat resistance, at a more cost-effective price point than premium UHMWPE alternatives.
Key Features

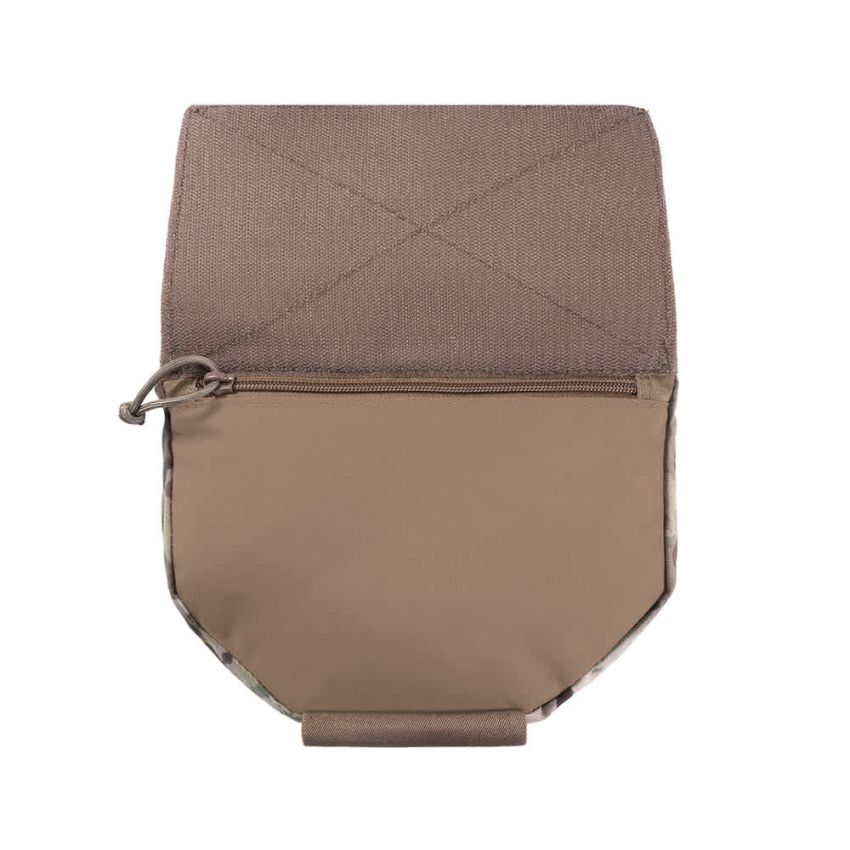

Fits Drop-Down Pouches & Danglers
Designed to slot directly into compatible utility pouches.
Lower Abdomen & Groin Coverage
Extends protection to areas typically exposed below a plate.
Lightweight at 0.2kg
Barely noticeable addition to your existing loadout.
Flexible Construction
Maintains freedom of movement and comfort.
Best Applications
Supplementary Lower-Body Protection
★★★★★
Drop-Down Pouch / Dangler Pairing
★★★★★
Cost Efficiency
★★★★★
Private Security / Anti-Poaching Add-On
★★★★☆
Standalone Torso Protection
☆☆☆☆☆
Noctis application note: Cost Efficiency rates highly — this is a small, affordable way to add genuine coverage to an existing system. Built to extend an existing armour system, not to replace torso-level protection; standalone torso use scores zero simply because that's not what it's designed for. For standalone chest protection, see the NS-S3A.
Tested Pistol Threats & Threat Limitation
Tested Pistol Threats
| Test Threat |
Projectile |
Description |
Velocity |
Energy |
Strikes |
| 9 x 19mm FMJ |
124gr |
Full Metal Jacket (FMJ) |
436 m/s |
763 J |
6 |
| .44 Magnum |
240gr |
Semi-Jacketed Hollow Point (SJHP) |
436 m/s |
1,477 J |
6 |
Tested in accordance with NIJ 0101.04 threat protocols. This statement does not itself mean NIJ certification. Metric-first presentation. Never infer missing specifications.
IMPORTANT THREAT LIMITATION
Not rated against rifle ammunition, armour-piercing handgun ammunition or other threats exceeding NIJ 0101.04 Level IIIA. Ballistic protection is threat-specific.

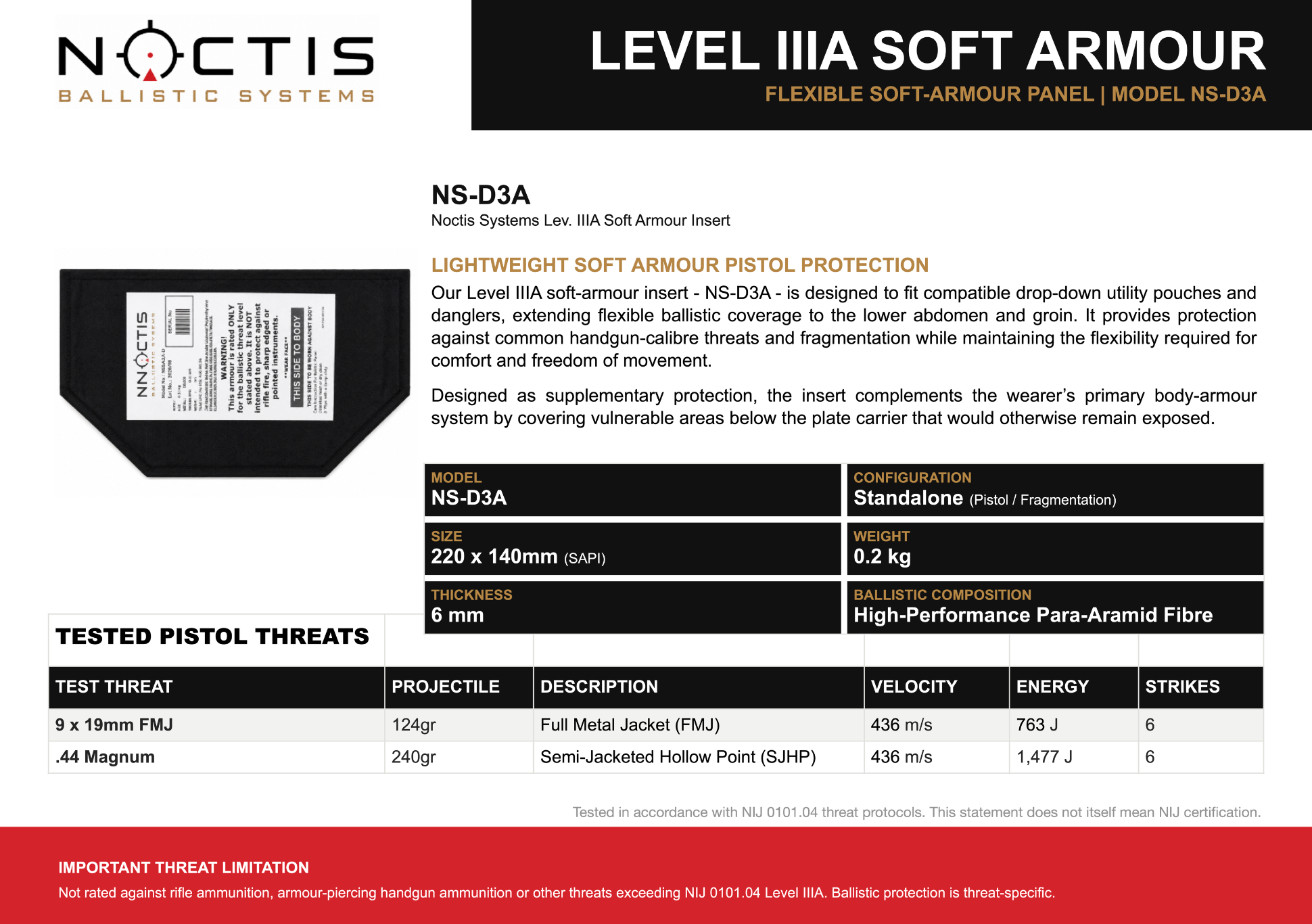

Technical Specifications
| Specification |
NS-D3A |
| Model |
NS-D3A |
| Configuration |
Standalone (Pistol / Fragmentation) |
| Size |
220 x 140mm (SAPI) |
| Weight |
0.2kg |
| Thickness |
8mm |
| Curvature |
Not applicable |
Metric-first presentation. Never infer missing specifications. Full tested pistol threat data is in the "Tested Pistol Threats & Threat Limitation" section above.
Noctis Ballistic Systems Warranty
5-Year Warranty.
Noctis Ballistic Systems products are covered by a 5-year warranty against defects in materials and workmanship. Contact Noctis Africa for warranty support and claims.
Why Buy From Noctis Africa?
Noctis Ballistic Systems
Independently Tested
Nationwide Delivery
Expert Advice
Our recommendations and advice are written for South African tactical professionals and operators — not copied from overseas catalogues.
Which Noctis Ballistic System Is Right For You?
| Model |
Level |
Configuration |
Weight |
Best For |
|
NS-D3A — This Product
|
IIIA |
Standalone (Pistol/Frag) |
0.2kg |
Lower abdomen/groin add-on |
| NS-S3A |
IIIA |
Standalone (Pistol) / ICW (Rifle) |
0.5kg |
Covert carry, upgradeable |
| NSICW3+ |
III+ (ICW) |
Requires NS-S3A |
1.0kg |
Scalable pistol-to-rifle setup |
| NSSA3+ |
III+ (Standalone) |
Standalone |
1.5kg |
Simple, single-plate rifle protection |
All four are tested and independently rated — none is more "certified" than another. The right choice depends on the threat you're equipping for and how much weight/bulk you're willing to carry to defeat it. As a rule of thumb: run the lightest configuration that genuinely covers your actual threat level, and use the NSICW3+ upgrade path if you want to start light and scale up later.
Noctis Africa Field Verified
Equipment selected, researched and verified for demanding real-world applications.
