Vortex Optics

Vortex Precision Diving Board Mount

Vortex Precision Diving Board Mount

R 3,799.00
R 3,799.00
Sale Sold out
Tax included.
Tube Diameter
View full details
Precision MountingVortex Rings & Mounts

Add a Backup Optic or Rangefinder — On Top of Your Scope.

The Vortex® Precision Diving Board Mount clips onto your existing Precision Matched Ring or Precision Extended Cantilever Mount, giving you a genuine top-rail position for a backup red dot, micro dot or emergency battle sight (EBS), or the Vortex® Impact® 4000 Rail-Mounted Ballistic Laser Rangefinder — without any extra hardware.

Official Specifications VerifiedMetric FirstVortex VIP Warranty
What It Mounts
Backup Optic / EBS / Rangefinder
Not a scope-to-rifle mount
Material
7075-T6 Aluminium
0.0005in tolerance, Type III hardcoat
Compatible With
Precision Matched Rings
& Precision Extended Cantilever Mounts
Warranty
Lifetime
Vortex® VIP® Warranty
Product Overview

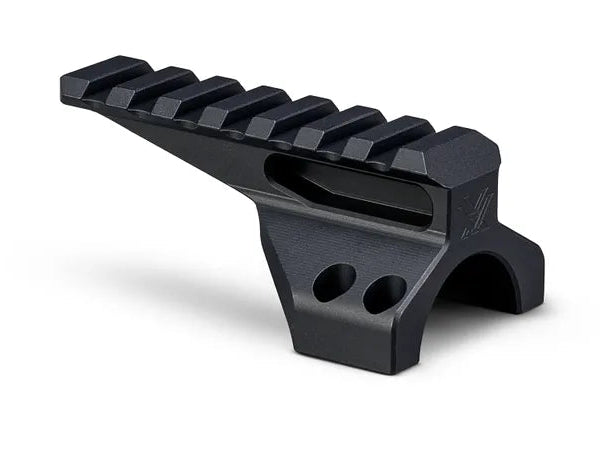

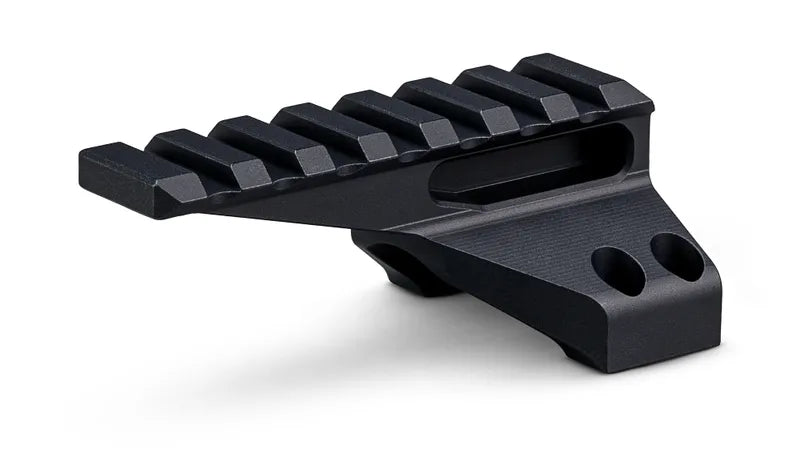

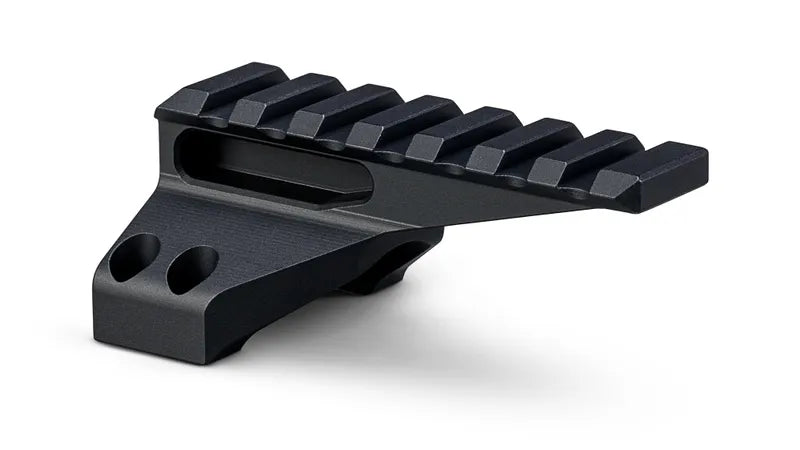

The Precision Diving Board Mount is a convenient top-ring mounting system, not a scope-to-rifle mount — it's designed to sit on top of a Precision Matched Ring or Precision Extended Cantilever Mount that's already installed on your rifle, giving you a genuine forward-position rail for a second device.

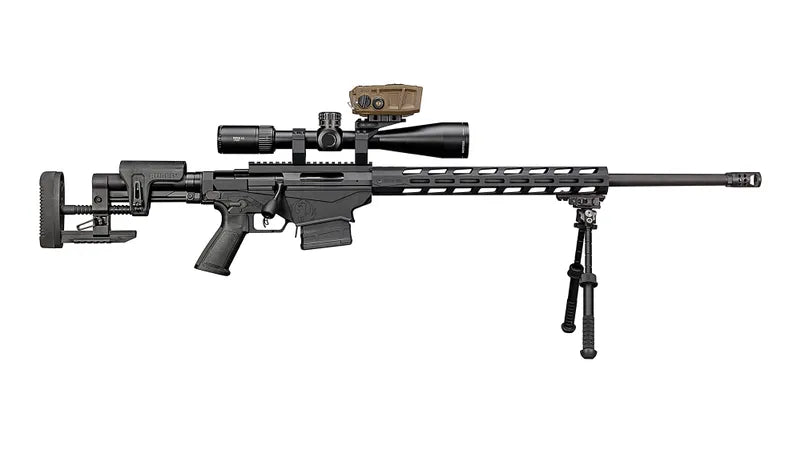

Vortex's own product information confirms this diving board mount provides the perfect mounting height and positioning for the Impact® 4000 Rail-Mounted Ballistic Laser Rangefinder, red dots, and other Picatinny-mounted accessories — a genuine option for adding a backup red dot, micro dot, or emergency battle sight (EBS) above your primary riflescope, without needing to remove or disturb your main optic's zero.

Machined from certified USA 7075-T6 billet aluminium, held to an extremely tight 0.0005in tolerance and anodized with Type III hardcoat, this is genuine Precision-tier construction. Note: not compatible with the Precision Quick-Release Cantilever Mount — use with the standard Precision Extended Cantilever Mount or Precision Matched Rings instead.

Technical Specifications
Specification Precision Diving Board Mount
Function Top-mount rail for a backup optic (red dot / micro dot / EBS) or rangefinder — does not mount a riflescope directly
Material 7075-T6 billet aluminium
Finish Type III hardcoat anodized
Manufacturing Tolerance 0.0005in
Compatible Base Mounts Precision Matched Rings, Precision Extended Cantilever Mounts
Not Compatible With Precision Quick-Release (QR) Extended Cantilever Mount
Confirmed Compatible Accessories Vortex® Impact® 4000 Rail-Mounted Ballistic Laser Rangefinder, red dot sights, other Picatinny-mounted accessories
Fasteners Included 4× T-25 Torx® screws, T-25 Torx® wrench
Available Sizes 30mm, 34mm (to match your Precision Matched Ring or Cantilever Mount tube diameter)
Manufacturer SKUs PMR-DB-30 / PMR-DB-34

Metric-first presentation. Original Vortex values retained where applicable. Never infer missing specifications.
