Vortex Optics

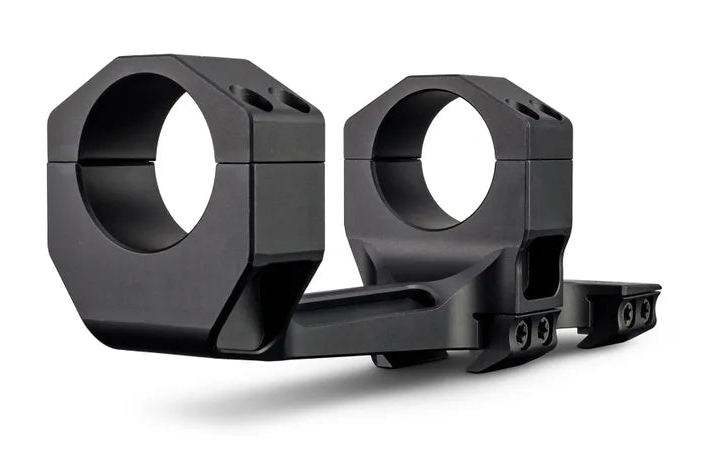

Vortex Precision Extended Cantilever 30mm Mount

Vortex Precision Extended Cantilever 30mm Mount

R 8,199.00
R 8,199.00
Sale Sold out
Tax included.
Configuration
View full details
Precision MountingVortex Rings & Mounts

Rock-Solid. Forward-Positioned. Genuinely One-Tool.

The Vortex® Precision Extended Cantilever Mount delivers your scope to a forward location for correct eye relief and head placement on AR-pattern rifles — machined from a solid block of 7075-T6 aluminium, horizontally split for easier mounting, with genuine commonality between fasteners for one-tool installation.

Official Specifications VerifiedMetric FirstVortex VIP Warranty
Material
7075-T6 Aluminium
Type 3 low-glare matte black anodized
Mount Height
40mm (1.574in)
From base to scope centre
Fasteners
Grade 8
One-tool installation
Warranty
Lifetime
Vortex® VIP® Warranty
Product Overview

Quickly bring your scope to a forward location using the Vortex Precision Extended Cantilever Mount. This rock-solid mount is precision-machined from a block of 7075-T6 aluminium and finished in hard-coat Type 3 anodized finish, positioning the centre of the riflescope tube at 1.574in (40mm) from the base.

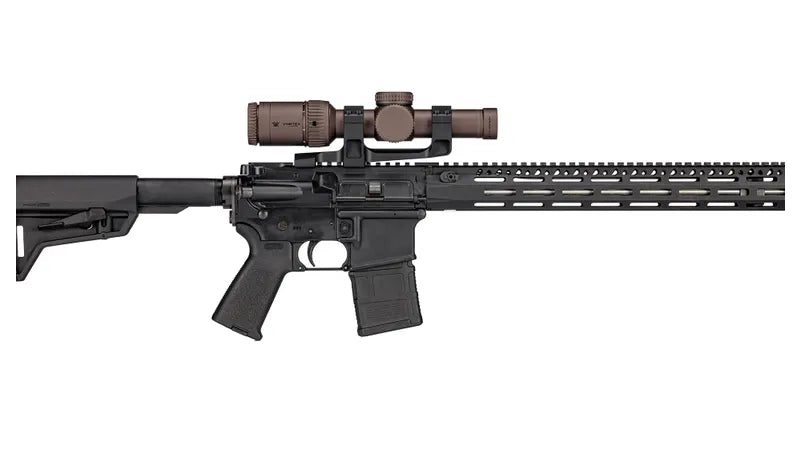

The extended, cantilevered design maintains proper head position and eye relief on an AR-pattern platform, with solid aluminium construction and two integrated rings accepting your scope's tube diameter directly. Horizontally split for easier mounting, with commonality between fasteners and components allowing genuine one-tool installation. Available with either no base elevation, or a 20 MOA cant for shooters who need extra elevation reserve at extended distances.

Technical Specifications
Specification Precision Extended Cantilever Mount
Material 7075-T6 aluminium
Finish Type 3 low-glare matte black anodized
Fasteners Grade 8
Mount Height 40mm (1.574in) from base to scope centre
Design Horizontally split, one-tool installation, integrated recoil lug
Rail Compatibility Picatinny
Cant Options Standard (0 MOA) or 20 MOA elevated cant
Tube Diameters Available 34mm, 30mm
Manufacturing Origin Made in USA

Metric-first presentation. Original Vortex values retained where applicable. Never infer missing specifications.

Noctis Africa Field Verified

Equipment selected, researched and verified for demanding real-world applications.
