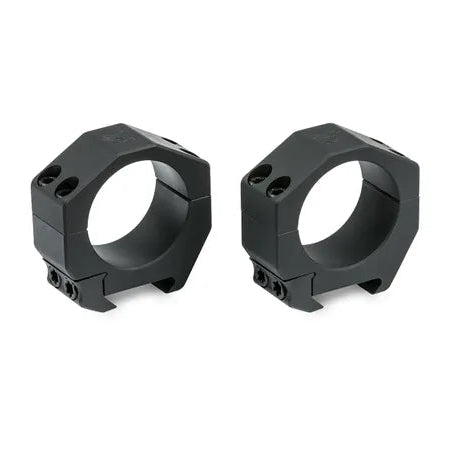

Vortex Precision Matched 34mm Rings

Vortex Precision Matched 34mm Rings

R 6,199.00
R 6,199.00
Sale Sold out
Tax included.
Height
View full details
Precision MountingVortex Rings & Mounts

Machined in Pairs. Held to 0.0005in Tolerance.

Vortex® Precision Matched Rings are the top-of-the-line two-piece ring set from Vortex — machined together as a perfect pair from certified USA 7075-T6 billet aluminium, held to an extremely tight 0.0005in CNC tolerance, and serialized to keep that matched pair together for life.

Official Specifications VerifiedMetric FirstVortex VIP Warranty
Material
7075-T6 Aluminium
Type III hard-coat anodized
Manufacturing
Billet-Matched Pairs
0.0005in CNC tolerance
Torque Specs
Base 45–50 in-lb
Ring screws 15–18 in-lb
Warranty
Lifetime
Vortex® VIP® Warranty
Product Overview

Vortex Optics starts with certified USA 7075-T6 billet aluminium and holds it to an extremely tight tolerance of 0.0005in using a precision CNC mill. Precision Matched Rings are kept in pairs throughout the entire manufacturing process — ensuring true concentricity between both rings in the set, not just consistency from one set to another.

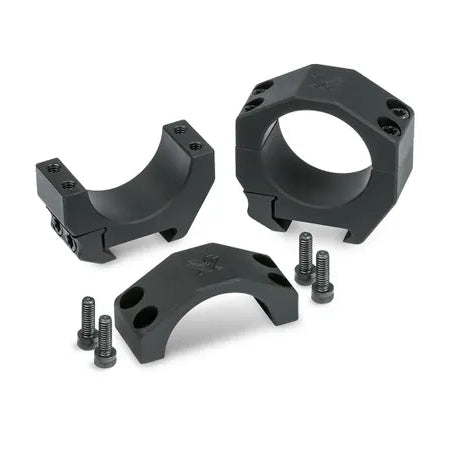

Each pair is serialized, vibratory tumbled, hand bead-blasted, and finished with a Type III hard-coat anodized coating. Robust Grade 8 fasteners hold the set together, with torque specifications built into the design for confident, correct installation. This is Vortex's flagship ring tier — genuinely suited to competitive and long-range shooters who need their scope to hold zero through hard use and transport, particularly on bolt-action precision rifles.

Technical Specifications
Specification Precision Matched Rings
Material 7075-T6 billet aluminium
Finish Type III hard-coat anodized
Manufacturing Machined and kept in matched pairs throughout production, 0.0005in CNC tolerance
Surface Treatment Serialized, vibratory tumbled, hand bead-blasted
Fasteners Grade 8
Base Clamp Screw Torque 45–50 in-lbs
Ring Screw Torque 15–18 in-lbs
Mount Compatibility Picatinny and Weaver
34mm Heights Available Low (.92in), Med (1.00in), Med Plus (1.10in), High (1.26in), Extra High (1.45in)
30mm Heights Available Low (.87in), Med (.97in), High (1.26in), Extra High (1.45in), Med Weaver (.97in)
1in Heights Available Low (.76in), Weaver/Picatinny compatible
Manufacturing Origin Made in USA

Metric-first presentation. Original Vortex values retained where applicable. Never infer missing specifications.
