Vortex Optics

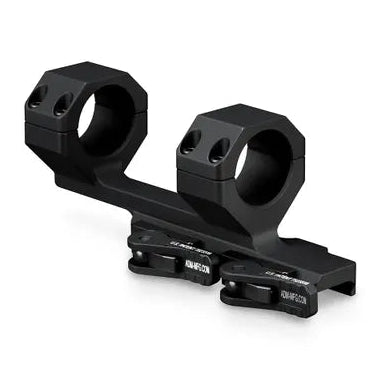

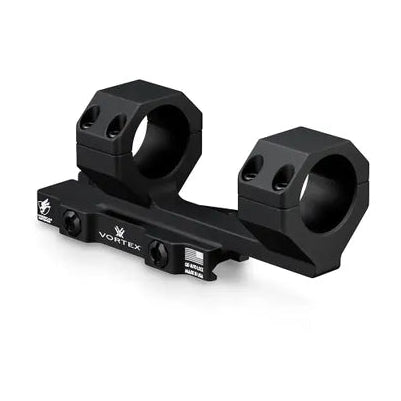

Vortex Precision QR Extended Cantilever 30mm Mount

Vortex Precision QR Extended Cantilever 30mm Mount

R 11,299.00
R 11,299.00
Sale Sold out
Tax included.
View full details
Precision MountingVortex Rings & Mounts

Dual Quick-Release. On and Off Without Tools.

The Vortex® Precision QR Extended Cantilever Mount uses dual quick-release levers for genuinely fast, tool-free installation and removal — a rock-solid forward-mounted platform for AR-15 flattop rifles, CNC-machined from 6061-T6 aluminium.

Official Specifications VerifiedMetric FirstVortex VIP Warranty
Material
6061-T6 Aluminium
Type 3 hard-coat anodized
Release
Dual Quick-Release Levers
Genuinely tool-free
Mount Height
37mm (1.45in)
From base to scope centre
Warranty
Lifetime
Vortex® VIP® Warranty
Product Overview

Built for lasting performance, the Vortex Precision QR Extended Cantilever Mount features dual quick-release levers for easy installation and removal, with a cantilever base for mounting in a forward location that provides optimal eye relief and head placement on AR-15 flattop rifles.

Constructed of 6061-T6 architectural aluminium with a Type 3 hard-coat anodized finish, this mount holds your scope's 30mm maintube at a 2-inch forward offset, positioning the optical axis 1.45in (37mm) above the base. Note: this quick-release design is not compatible with the Precision Diving Board Mount — pair the standard Precision Extended Cantilever Mount instead if you need diving-board compatibility.

Technical Specifications
Specification Precision QR Extended Cantilever Mount
Material 6061-T6 aluminium
Finish Type 3 hard-coat anodized
Release Mechanism Dual quick-release levers, tool-free installation and removal
Tube Diameter 30mm only
Forward Offset 2 inches
Mount Height 37mm (1.45in) from base to scope centre
Rail Compatibility Picatinny / Weaver
Ring Screw Bit Size 9/64in hex head
Weight 252g (8.9oz)
Compatibility Note Not compatible with the Precision Diving Board Mount
Manufacturing Origin Made in USA

Metric-first presentation. Original Vortex values retained where applicable. Never infer missing specifications.

Noctis Africa Field Verified

Equipment selected, researched and verified for demanding real-world applications.
