Vortex Spitfire HD Gen II 5x Prism Scope
Vortex Spitfire HD Gen II 5x Prism Scope
Couldn't load pickup availability
Maximum Reach. Plus Room for a Red Dot.
The Vortex Spitfire™ HD Gen II 5× extends the same battery-independent, astigmatism-friendly prism design further — with a built-in MRDS mounting platform on top, letting you piggyback a genuine 1× red dot for the best of both worlds.
✓ Noctis Africa Verified
Checked against official Vortex Optics product information. Specifications, included accessories, reticle details, mounting information and compatibility notes are verified before publication. Metric measurements are presented first for South African customers, with original manufacturer figures retained where useful.
Etched, tuned to 5.56
Viper®/Venom® footprint on top
CR2032, lowest setting
Product Overview

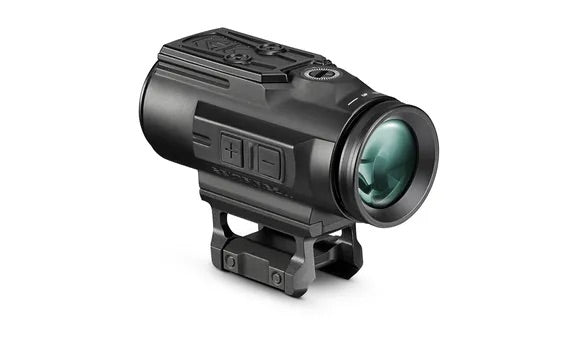

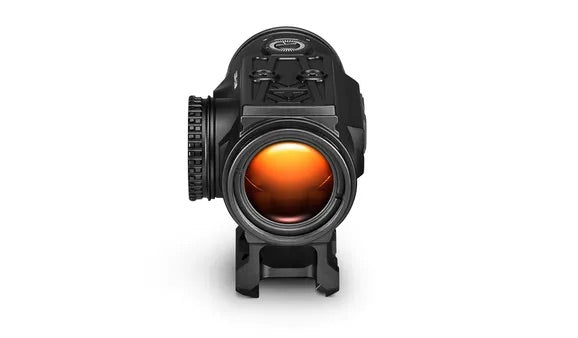

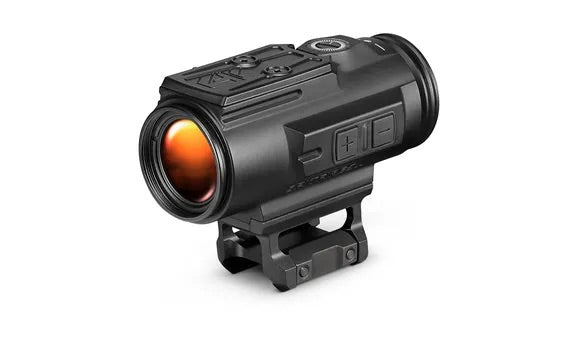

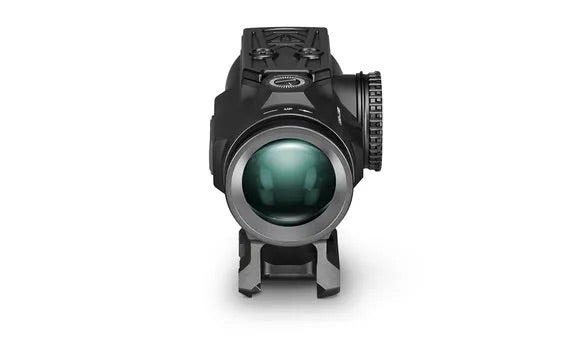

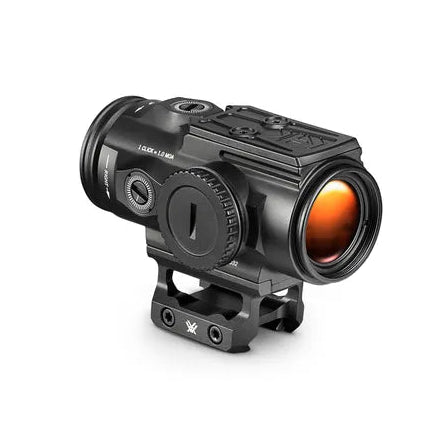

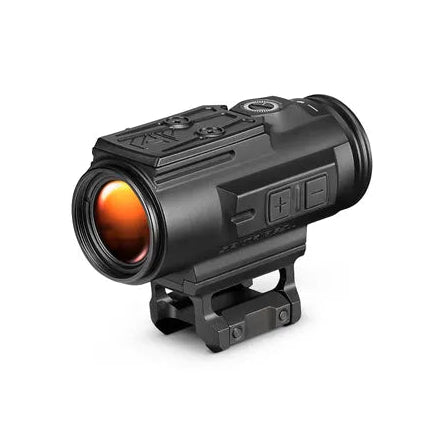

The Spitfire™ HD Gen II 5× extends the redesigned HD optical platform to a higher fixed magnification, striking a balance between the speed of a red dot and the precision of a traditional scope. Its etched-glass AR-BDC4 reticle remains visible with or without illumination, tuned to the 5.56 cartridge for holdovers out to 650 yards.
Uniquely among the Spitfire range, the 5× model includes a built-in MRDS mounting platform on top of the main housing — compatible with the Vortex Viper® 6 MOA (VRD-6) or Venom® 3 MOA (VMD-3103) red dots. This allows a true 1× close-quarters solution to sit directly above the 5× prism, giving genuinely flexible close-to-mid-range capability in a single mounted system.
12 brightness settings (2 night-vision compatible), a single-piece aluminium chassis with a hard-anodized matte finish, and full waterproof, fogproof and shockproof construction round out a scope built for serious use across hunting, tactical, and competitive applications.
Key Features
Redesigned for exceptional resolution, reduced chromatic aberration, and edge-to-edge sharpness.
Tuned to the 5.56 cartridge, with holdovers out to 650 yards — always visible, illuminated or not.
Piggyback a Vortex Viper® or Venom® red dot on top for true 1× close-range capability.
Includes 2 night-vision compatible levels.
Lower 1/3 Co-Witness and Low mounts, both included.
Etched glass eliminates the starburst/streaking some shooters see with standard red dots.
Best Applications
★★★★☆
★★★★☆
★★★☆☆
★★☆☆☆
★★★☆☆
★★★★★
★★★★☆
Which Vortex Optic/Red Dot Is Right For You?
Compare Vortex Red Dots, Prisms & Holographic Sights
| Model | Tier | Best Suited For | Battery Life | Noctis Verdict |
|---|---|---|---|---|
| Triumph™ | Entry Level | First-time buyer & recreational use | 50,000 hrs | First-Time Buy |
| Crossfire® II | Mid Tier | Coming soon — not yet available from SA distributor | TBC | Coming Soon |
| StrikeFire® II | Mid Tier | Training, general rifle use, magnifier-ready | Up to 80,000 hrs | Best Value |
| Spitfire™ AR 1× | Professional | Close-quarters speed, astigmatism-friendly | Up to 3,000 hrs (etched reticle) | CQB Prism Pick |
| Spitfire™ HD Gen II 3× | Professional | Mid-range reach, astigmatism-friendly | Battery-independent (etched glass) | Professional Pick |
| Spitfire™ HD Gen II 5× | Professional | Extended reach, MRDS red dot piggyback | Battery-independent (etched glass) | Extended Reach Pick |
| AMG® UH-1® Gen II | Top Shelf | CQB, MIL/LE, night vision, magnifier pairing | 1,500 hrs | Ultimate Performance |
Magnifier accessories — Micro3X (3×, 2.64in/67mm eye relief), Micro6X (6×, 2.5in/64mm eye relief), and VMX-3T (3×, 2.2in/56mm eye relief — the shortest in the range) — pair with any red dot or holographic sight in this lineup, including the UH-1, for extended reach. They are not recommended for use with the Spitfire prism scopes, which already carry fixed magnification.
Reticle & Sight Picture

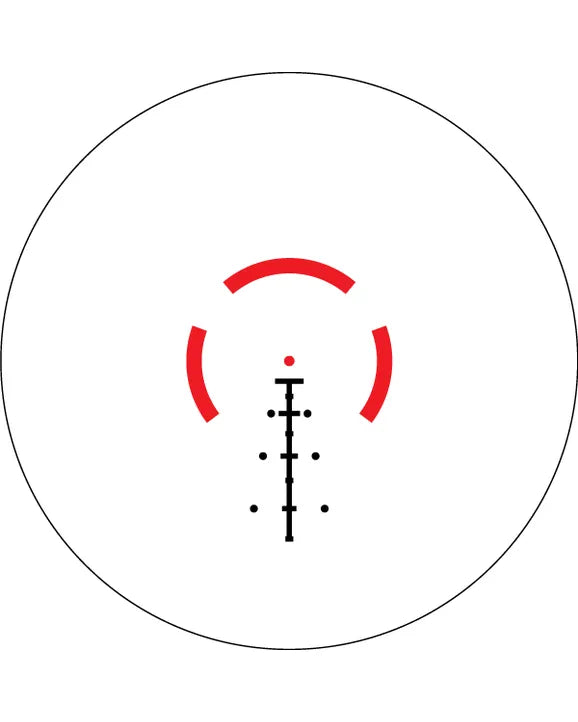

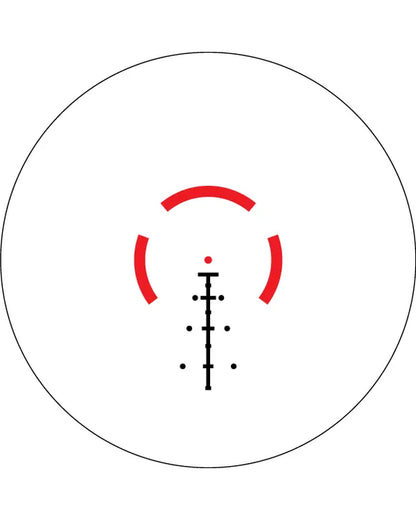

The AR-BDC4 reticle is etched directly onto the prism glass and built specifically to get the most out of the 5.56 cartridge — providing both rapid target acquisition and precise holdovers out to 650 yards, visible with or without illumination.
Because the reticle is etched rather than projected, it eliminates the starburst or streaking pattern that shooters with astigmatism sometimes experience with standard red dots. With the optional MRDS-mounted red dot in place, the shooter gains a second, independent aiming reference for true 1× close-range engagement.
Reticle: AR-BDC4, etched glass | Calibration: 5.56 cartridge, holdovers to 650 yards
Technical Specifications & Mounting
| Specification | Spitfire™ HD Gen II 5× |
|---|---|
| Optic Type | 5× Prism Scope |
| Magnification | 5× (fixed) |
| Objective Lens Diameter | 25mm |
| Reticle | AR-BDC4, etched glass |
| Eye Relief | 69mm (2.7in) |
| Field of View | 7.1m at 91m (23.3ft at 100yd) |
| Battery | CR2032 (included) |
| Battery Runtime | Approx. 180 hours continuous at mid-brightness; 14-hour auto-shutdown |
| Brightness Settings | 12 (includes 2 night-vision compatible levels) |

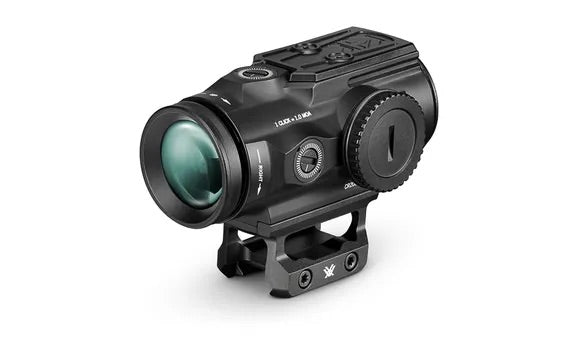

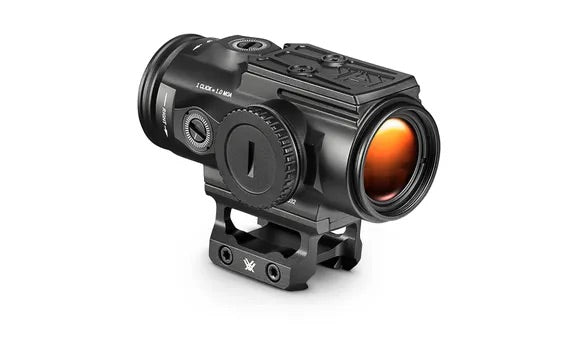

| Adjustment Graduation | 1 MOA |
| Max Elevation Adjustment | 200 MOA |
| Max Windage Adjustment | 200 MOA |
| Weight | 292g (10.3oz) |
| Body Finish | Hard-anodized matte finish, single-piece aluminium chassis |
| Mount Type | Multi-height — Lower 1/3 Co-Witness and Low mounts, both included |
| MRDS Platform (top-mount) | Compatible with Vortex Viper® 6 MOA (VRD-6) or Venom® 3 MOA (VMD-3103) — Viper/Venom footprint, not RMR |
| Magnifier Compatibility (base optic) | Not compatible — prism scopes do not work with Vortex magnifiers |
| Included Accessories | Rubber lens covers, T-10 Torx multi-tool, lens cloth, CR2032 battery |
| Recommended Use | 5.56-calibre AR platforms; also usable on AK platforms, though BDC holdovers are 5.56-calibrated |
Metric-first presentation. Original Vortex values retained where applicable. Never infer missing specifications.
Vortex VIP Warranty
Unlimited. Unconditional. Lifetime.
If a Vortex product becomes damaged or defective, Vortex will repair or replace it at no charge, subject to the official VIP Warranty terms.
No set time limit
Damage or defect covered
Not restricted to the first owner
Assistance through the local dealer or distributor
The warranty excludes loss, theft, deliberate damage, and cosmetic damage that does not affect performance.
Contact Noctis Africa and we will guide you through the applicable local support process.
