Vortex Optics

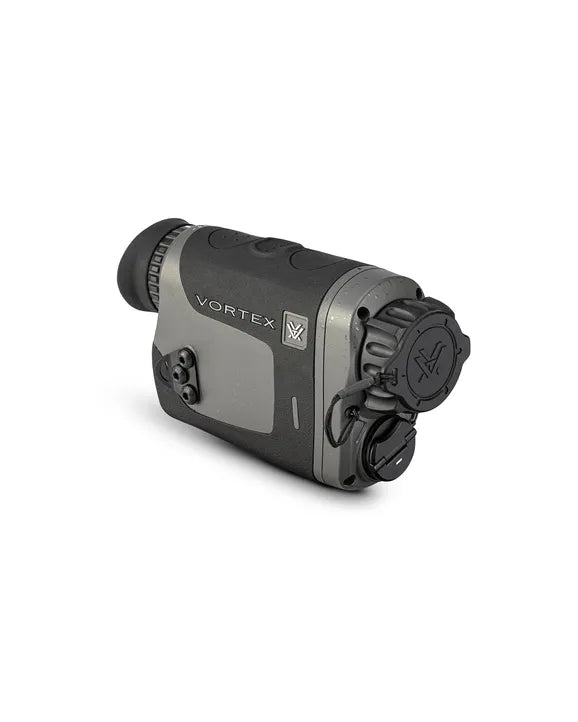

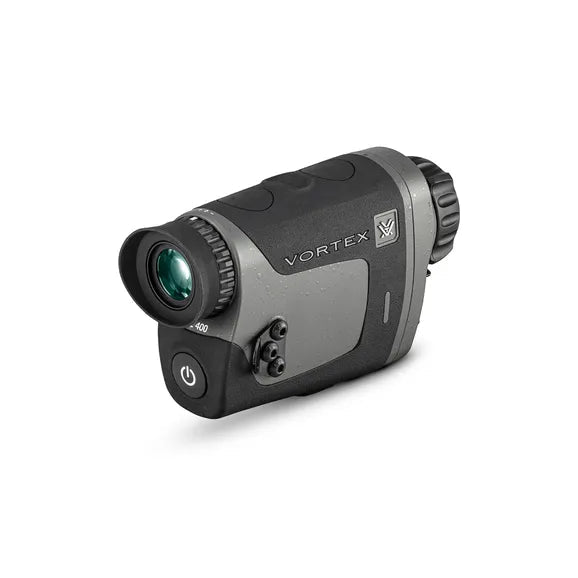

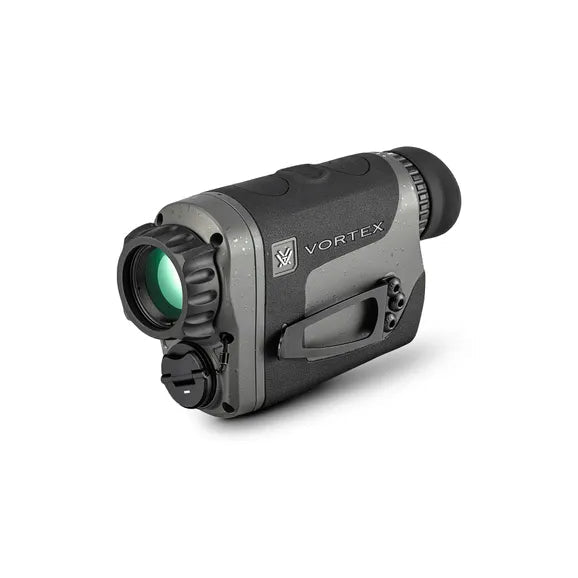

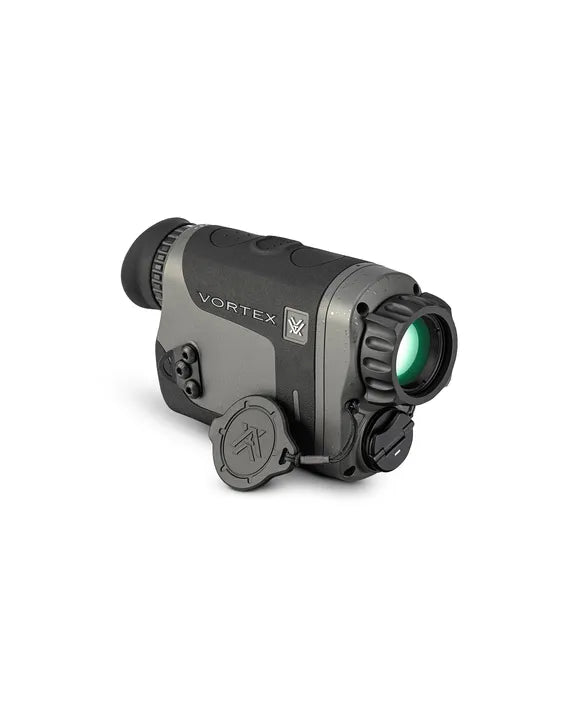

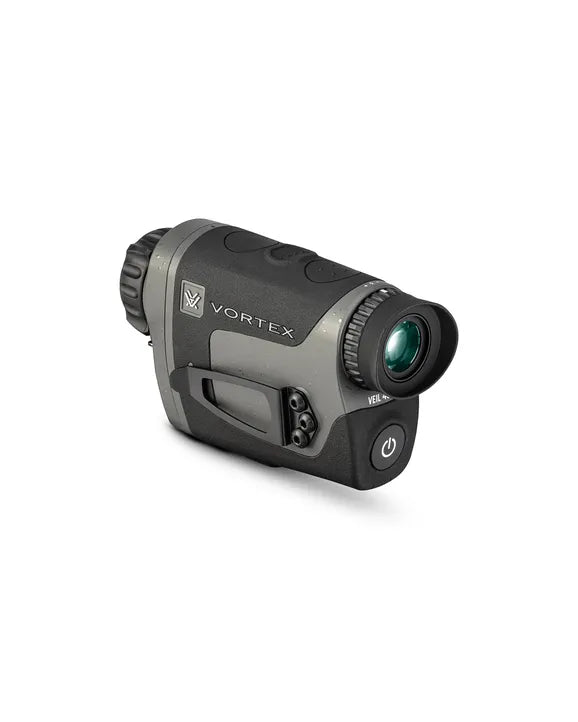

Vortex Veil 400 Thermal Monocular
Vortex Veil 400 Thermal Monocular
Couldn't load pickup availability
Own the Night. See More. Stay Out Longer.
A compact, intuitive 400×300 thermal monocular built for night hunting, game detection, scouting, property management and confident navigation after dark.
✓ Noctis Africa Verified
Checked against official Vortex product information. Specifications, included accessories and compatibility notes are verified before publication. Metric measurements are presented first for South African customers.
12 μm pixel pitch
1,100 yd
50 Hz refresh rate
Hunting, scouting & property use
Product Overview
The Vortex Veil™ 400 is a compact handheld thermal monocular designed to extend observation capability beyond daylight. Its 400×300 thermal detector uses a fine 12 μm pixel pitch, paired with a 1024×768 OLED display and 50 Hz refresh rate for clear, fluid thermal viewing.
A 2.3× base magnification provides a useful balance between field of view and target identification, with 1×, 2× and 4× digital zoom available when additional magnification is required. Four thermal colour palettes and three dedicated viewing modes allow the image to be adapted to different terrain, vegetation, humidity and temperature conditions.
Photo and video capture, an integrated compass, rechargeable 18650 power, tripod compatibility and rugged waterproof, fogproof and shockproof construction make the Veil 400 a versatile field observation tool for night hunting, scouting and general thermal detection.
Key Features
120,000 heat-detecting pixels provide detailed thermal imaging for detection and identification.
Fine pixel spacing improves image detail and helps distinguish animals from surrounding terrain.
High-resolution internal display provides a crisp viewing image during extended observation.
Provides smooth thermal imagery when scanning terrain or following moving animals.
Choose Black Hot, White Hot, Red Hot or Multicolor to suit conditions and viewing preference.
Balanced, Contrast and Brush modes optimise the thermal image for different environments.
Capture thermal photos and video directly from the monocular for later viewing or sharing.
Provides useful orientation assistance when operating in unfamiliar terrain after dark.
Provides up to 4.5 hours of runtime per battery with two rechargeable batteries supplied.
Compatible with a 1/4-20 tripod adapter for tripod or vehicle-window observation setups.
Provides a secure non-slip grip while adding durable external protection.
Waterproof, fogproof and shockproof construction supports use in demanding outdoor environments.
Best Applications
| Detection Range | ★★★☆☆ |
| Image Clarity & Resolution | ★★★☆☆ |
| Close-Range & Bad Weather Performance | ★★★★☆ |
| Portability & All-Day Carry | ★★★☆☆ |
| Navigation & Field Use | ★★★★★ |
Which Thermal Monocular Is Right For You?
Compare Thermal Imaging Monoculars
| Model | Tier | Best Suited For | Detection Range | Noctis Verdict |
|---|---|---|---|---|
| Pulsar Axion Compact XQ19 | Essential Level | First-time buyer, budget-conscious scanning | 750m | Best Value Entry |
| Pulsar Axion Compact XQ30 PRO | Mid Tier | Close-range observation in poor weather | 1,050m | Weather Pick |
| Vortex Veil 400 | Mid Tier | Familiar controls, premium warranty backing | 1,006m | Warranty Pick |
| Pulsar Axion Compact XG30 | Professional | Thick bush and dense vegetation | 1,300m | Vegetation Pick |
| Pulsar Axion Compact XG35 | Top Shelf | Active hunts, close-to-mid-range detection | 1,750m | Longest Range |
Detection range is the distance at which a human-sized heat signature can be detected (not necessarily identified) under favourable conditions. Sensor resolution, pixel pitch and display quality also meaningfully affect real-world image clarity — a longer detection range does not automatically mean a clearer or more usable image at that distance.
Technical Specifications
Thermal & Display Performance
| Detector Resolution | 400×300 |
| Detector Pixel Pitch | 12 μm |
| Display Resolution | 1024×768 |
| Display Type | OLED |
| Refresh Rate | 50 Hz |
| Brightness Settings | 5 |
Optical & Detection Performance
| Base Magnification | 2.3× |
| Digital Zoom | 1×, 2×, 4× |
| Objective Lens Diameter | 25 mm |
| Detection Range | Up to 1,006 m (1,100 yd) |
| Angular Field of View | 11.0° |
| Linear Field of View | 17.6 m at 91.4 m (57.8 ft at 100 yd) |
Power & Physical Specifications
| Battery Type | Rechargeable 18650 |
| Battery Runtime | Up to 4.5 hours per battery |
| Length | 124 mm (4.9 in) |
| Height | 81 mm (3.2 in) |
| Width | 48 mm (1.9 in) |
| Weight | 377 g (13.3 oz) |
In the Box
2× Rechargeable 18650 Batteries
Battery Charger
USB-C to USB-A Cable
USB-C to USB-C Cable
Hard Storage Case
Neck Lanyard
Lens Cloth
Utility Clip
2 mm Hex Wrench
Vortex VIP Warranty
Unlimited. Unconditional. Lifetime.
The Veil 400 is covered by the Vortex VIP® Warranty, including its electronics, subject to the official warranty terms.
No set time limit
Damage or defect covered
Thermal electronics included
Assistance through the local dealer or distributor
The warranty excludes loss, theft, deliberate damage and cosmetic damage that does not affect product performance.
Contact Noctis Africa and we will guide you through the applicable local support process.
Why Buy From Noctis Africa?
Our recommendations, specifications and buying advice are written specifically for South African hunters, farmers, tactical professionals, wildlife managers and outdoor users—not simply copied from overseas catalogues.
Local insight. Practical advice. Trusted equipment.
Need help choosing the right thermal?
Thermal performance depends heavily on your intended application, terrain, observation distance and required level of identification. Speak to the Noctis Africa team for practical advice before choosing your thermal system.
Noctis Africa Field Verified
Equipment selected, researched and verified for demanding real-world applications.
